110G54

Anderson Power Products - Connector

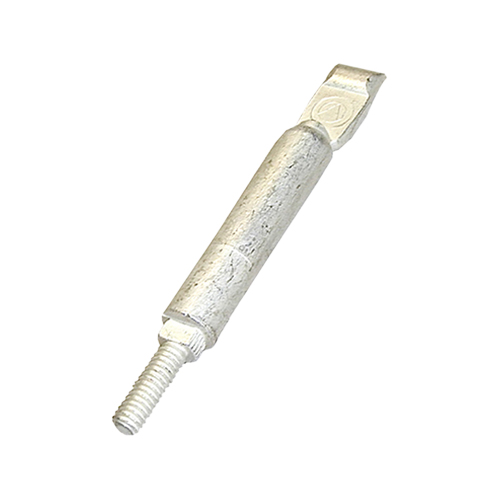

SB®120/SB®50/PP75 Silver Plated Busbar Contacts, Locknut #10-24

SB® 50 MULTIPOLE CONNECTOR
(UP TO 120 AMPS)

The innovative Anderson Power Products™ SB® 50 connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.

Anderson Power Products™ 2 pole connector is available with a 50 amp rating, 600 Volts continuous AC or DC operation. There are Anderson Power Products™ SB® 50 connectors for many applications and wire sizes, #6 to #16 AWG (13.3 to 1.3 mm2). Mechanical keys ensure that these Anderson Power Products™ SB® 50 connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.

Anderson Power Products™ SB® Connector Features:

  • Low resistance silver or tin plated copper contacts - allows UL rated currents up to 120 amps
  • UL rated for hot plugging up to 50 amps - Great for battery or other applications where the ability to interrupt circuits is required
  • Chemical resistant housings available
  • Wire, PCB, and busbar contacts - allows one connection system to meet multiple needs

Learn more about how these Anderson SB® 50 multipole connectors are supporting the growing demand of robotics-focused operations by checking out our blog post called: "PEI-Genesis: Supporting Next Generation Engineers".

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Connector Type:Contact
Connector Style:Busbar
Mounting Type:Bus Bar Hardware
Amperage Rating:30A, 55A, 120A
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): 0.00441
Weight (g): 2.00000
