992G5

Anderson Power Products

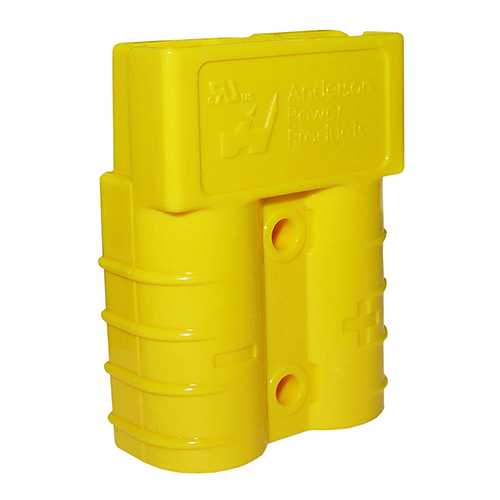

SB50 HSG YELLOW

SB® 50 MULTIPOLE CONNECTOR
(UP TO 120 AMPS)

The innovative Anderson Power Products™ SB® 50 connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.

Anderson Power Products™ 2 pole connector is available with a 50 amp rating, 600 Volts continuous AC or DC operation. There are Anderson Power Products™ SB® 50 connectors for many applications and wire sizes, #6 to #16 AWG (13.3 to 1.3 mm2). Mechanical keys ensure that these Anderson Power Products™ SB® 50 connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.

Anderson Power Products™ SB® Connector Features:

  • Low resistance silver or tin plated copper contacts - allows UL rated currents up to 120 amps
  • UL rated for hot plugging up to 50 amps - Great for battery or other applications where the ability to interrupt circuits is required
  • Chemical resistant housings available
  • Wire, PCB, and busbar contacts - allows one connection system to meet multiple needs

Learn more about how these Anderson SB® 50 multipole connectors are supporting the growing demand of robotics-focused operations by checking out our blog post called: "PEI-Genesis: Supporting Next Generation Engineers".

** Actual product appearance may vary **

Price Information

Available Qty: 136
Order Qty:
CAN SHIP:in 4 days

We have more in stock.

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.
QuantityPrice
1 - 9$2.63$2.63
10 - 24$2.53$2.53
25 - 49$2.37$2.37
50 - 99$2.22$2.22
100 - 136$2.09$2.09
137+
PRODUCT INFORMATION
Sealing:IP10
Connector Type:Housing
Mounting Type:Inline, Through Hole Solder
Shell Color:Yellow
Amperage Rating:30A, 55A, 120A
Operating Temperature °F (°C):-4 to +221 (-20 to +105)
Contact Mating Life:10000
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): 0.03527
Weight (g): 16.00000
