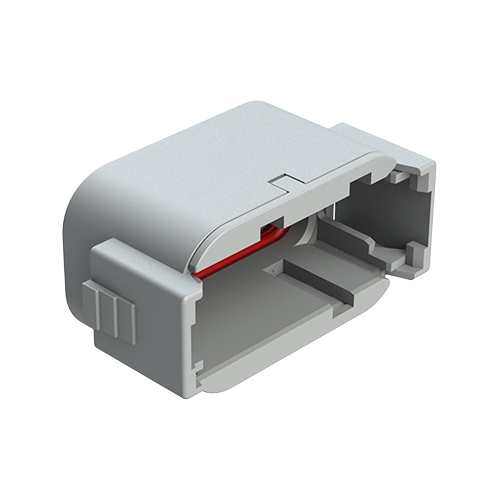

ATM06-12SA-CAP

Amphenol Sine

ATM 12 POS PLUG

ENGINEERED FOR SMALLER AWG APPLICATIONS

Amphenol Sine Systems ATM Series™ rectangular connectors are an IP67 rated (mated), high-performance, cost-effective solution specifically designed for smaller AWG applications, while still maintaining the strengths of the AT Series™ product line. All of the ATM Series™ connectors have been developed to be compatible with other existing standard products industry-wide.

  • 2, 3, 4, 6, 8 and 12 positions available
  • 16-22AWG, 7.5A, Size 20
  • Thermoplastic housing with integrated latch for mating
  • High temperature silicone seals provide superior sealing
  • Wedgelocks ensure proper contact alignment & retention
  • Compatible with existing standard products industry-wide
  • IP67 rated (in mated condition)
  • Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy

The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Specification:UL94-V0
Sealing:IP68 (in mated condition)
Connector Type:Accessories
Connector Style:Protective Cap for Plugs
Contacts, # of:12
Contacts Supplied:No
Shell Material:Thermoplastic
Shell Color:Grey
Operating Temperature °F (°C):-67 to +257 (-55 to +125)
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
