C016 10D003 003 1

Amphenol Sine

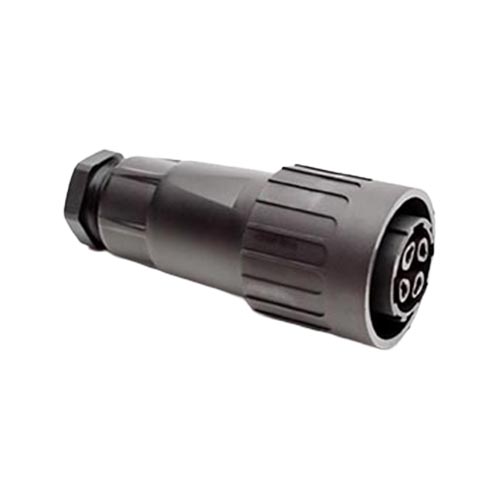

3+PE Female cable connector with internal strain relief and clamping ring. For use with crimp contacts (sold separately).

BAYONET IP65 CONNECTORS FOR HARSH ENVIRONMENTS

Amphenol Tuchel Industrial’s ecomate® C16 Series of connectors provide an IP65 rating (in mated condition) for rough environmental conditions, and incorporates the latest technology in a sealed, robust, lightweight, thermoplastic design. ecomate® C16 connectors feature a circular bayonet coupling system for easy, reliable mating/unmating. Two types of connectors are available: Field- installable, screw termination, and a cost-effective, crimp version for machine processing.

Features and Benefits

  • IP Rating: IP65 Rated (in mated condition)
  • IP Rating Specifications: "IP65 Rated
    • (Resistant from Water Jets, in mated condition)"
  • Size/Insert Arr: 2 Shell Sizes/11 Insert Arrangements
  • Unique Feature: Circular Thermoplastic
  • Max Amp/Volt: Up to 50A @ 40°C/900V
  • Op Temp: -40°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: Thermoplastic, UL 94-V0
  • Contact Types: Stamped & Formed
  • Wire AWG Range: 28 - 10AWG (0.09 - 6.0 mm²)
  • Contact Termination: Screw (Field Install), Crimp
  • Sealing Material: Neoprene
  • Mating Cycles: >500
  • Shielding: None
  • Flammability Rating: UL 94 V-0
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: ≥ 10⁸ Ω
  • Approvals: VDE, UL and CSA
  • RohS Compliant: Yes

Vibration-safe connections are provided by a solid bayonet coupling. For safety, pre-earth first-mate last-break contacts are standard. Screw and crimp terminations are available for these C16 IP65 connectors for easy field installation and cost-effective machine processing.

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Specification:C16-3
Sealing:IP65
Connector Type:Connectors
Connector Style:Female Cable Connector
Mounting Type:Bayonet
Contacts, # of:4
Contact Style:D
Termination Method:Crimp
Crimp Wire Gauge:20-12
Contacts Supplied:Yes
Contact Plating:Silver/Gold
Shell Material:Polyamid 6.6
Operating Temperature °F (°C):-40 to +257 (-40 to +125)
Contact Mating Life:500
Cable Diameter-Outside:10-12
Insulation Resistance:8 Ohms
Mating Type/Coupling Mechanism:Bayonet
Shell Size:1
Voltage Rating:900V
Current (A):23
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
