C016 G11 042 E1 V

Amphenol Tuchel

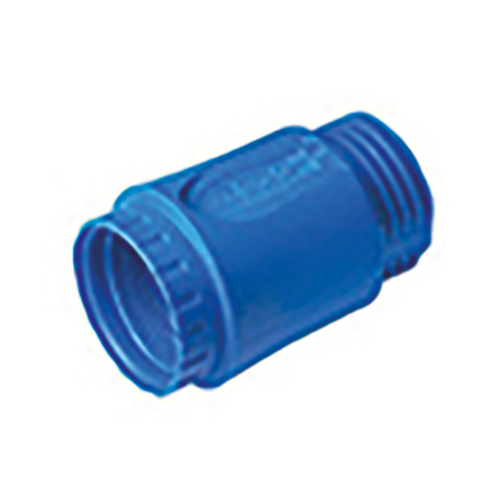

Blue Backshell, straight, package of 5

ROBUST CONNECTORS FOR EXTREME INDUSTRIAL ENVIRONMENTS

Amphenol Tuchel Industrial’s ecomate® Plastic Series of connectors provide an IP65/67 rating (in mated condition) for industrial applications, and incorporates the latest technology in a sealed, high-impact, lightweight, thermoplastic design. ecomate® Plastic connectors feature a rapid threading coupling system for easy, reliable mating/unmating. Also available as ecomate® Overmolded Cable Assemblies with integrated uni-directional strain reliefs, highly-flexible cables resistant to a wide range of chemical fluids, all while being UV and corrosion resistant.


  • IP Rating: IP65 and IP67 Rated (in mated condition)
  • IP Rating Specifications: "IP65 Rated
    • (Resistant from Water Jets, in mated condition) IP67 Rated (1M of Water for 30 Minutes, in mated condition)"
  • Size/Insert Arr: 1 Shell Sizes/4 Insert Arrangements
  • Unique Feature: Circular Thermoplastic
  • Max Amp/Volt: Up to 22A @ 40°C/600V
  • Op Temp: -40°C to +125°C
  • Coupling System: Rapid Threading
  • Housing Body: Thermoplastic, UL 94-V0
  • Contact Types: Stamped & Formed, Machined, Solder
  • Wire AWG Range: 26 - 14AWG (0.14 - 2.5mm²)
  • Contact Termination: Screw (Field Install), Crimp, Solder
  • Sealing Material: Neoprene
  • Mating Cycles: >500
  • Shielding: None
  • Flammability Rating: UL 94 V-0
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: ≥ 10⁸ Ω
  • Approvals: VDE, SEV, UL, CSA
  • RohS: Compliant: Yes

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Connector Type:Circular
Connector Style:Backshell
Shell Material:PA 6.6 / PA6
Shell Color:Blue
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
