Amphenol LJT Miniature Connectors (MIL-DTL-38999 Series I)
100% SCOOP-PROOF DESIGN WITH QUICK, POSITIVE BAYONET COUPLING
Amphenol LJT MIL-DTL-38999 series I miniature connectors offer high-density contact arrangements, EMI shielding, error proof alternate positioning, and are suitable for extremely high-reliability connections, including use in military and commercial aviation/aerospace industries.
They are environmentally-sealed, have a wide operating temperature range and meet the requirements of HE308. Amphenol LJT series connectors are intermateable with Souriau and all MIL-DTL-38999 series I connectors and were formerly called MIL-C-38999. For full details on our Amphenol LJT series connectors, please see the specifications below.
Get shopping! Mil spec part number prefixes include MS27466, MS27467, MS27468, MS27496, MS27505 and MS27656. HE prefix is HE308.
|
FEATURESAMPHENOL LJT SERIES FEATURES
MATERIALS & FINISHESAMPHENOL LJT SERIES MATERIALS & FINISHES
Shell Aluminum Alloy, or Stainless Steel
Bayonet Pins Passivated stainless steel per QQ-S-763
Shell Plating A - Clear chromate over cadmium over electroless nickel per QQ-P-416
B - Olive drab chromate over cadmium over electroless nickel per QQ-P-416 F - Electroless nickel per QQ-N-290 C - Hard, anodic, non-conductive in accordance with MIL-A-862 W52 - Olive drab zinc cobalt Contacts Copper alloy
Contact Plating Gold-plated, 50 microinches per MIL-G-45204 type II, grade C, class I
Insulator Hard dielectric wafer which contains metal retention tines for high-reliability retention of crimp contacts
Grommet & Seals Silicone-based elastomer
Grounding Springs Beryllium copper
ELECTRICAL DATAAMPHENOL LJT SERIES ELECTRICAL DATA
Test Voltage (Unmated Condition)Service Rating Test Voltages N M I II Sea Level 1000 1300 1800 2300 100,000 Feet 200 200 200 200 Operating Voltage Service Rating N M I II Operating Voltage 300VAC/450VDC 400VAC/500VDC 600VAC/850VDC 900VAC/1250VDC Current Rating by Contact Size & Wire Accommodation (Test Amps) Wire Size 22D 22M* 22* 20 16 12 8 28 1.5 1.5 - - - - - 26 2.0 2.0 2.0 - - - - 24 3.0 3.0 3.0 3.0 - - - 22 5.0 - 5.0 5.0 - - - 20 - - - 7.5 7.5 - - 18 - - - - 10.0 - - 16 - - - - 13.0 - - 14 - - - - - 17.0 - 12 - - - - - 23.0 - 8 (Power) - - - - - - 46 Contact resistance of Mated Contacts End-to-End Contact Size Max. Millivolt Drop 22D 73 22M* 45 22* 73 20 55 16 49 12 42 8 (Power) 26 Insulation Resistance 5,000 megohms minimum
MECHANICALAMPHENOL LJT SERIES MECHANICAL
Operating Temperature A - Plating -65°C to 150°C (-85°F to 302°F)
B - Plating -65°C to 175°C (-85°F to 347°F) F - Plating -65°C to 200°C (-85°F to 392°F) C - Anodic (non-conductive) -65°C to 200°C (-85°F to 392°F) W52 - Plating -65°C to 150°C (-85°F to 302°F) Sealing Against sand, dust per MIL-STD-202 & ice resistance
Wire Sealing Range Contact Size Minimum IN Maximum IN Minimum MM Maximum MM 22D 0.030 0.054 0.76 1.37 22M* 0.030 0.050 0.76 1.27 22* 0.034 0.060 0.86 1.52 20 0.040 0.083 1.02 2.11 16 0.065 0.109 1.65 2.77 12 0.097 0.142 2.46 3.61 10 0.135 0.162 3.42 4.12 8 (Power) 0.135 0.155 3.43 3.94 8 (Co-ax) 0.135 0.155 3.43 3.94 8 (Twinax) 0.124 0.134 3.15 3.40 *Inactive for new designs AMPHENOL LJT SERIES INSULATION STRIP LENGTH
Contact Size Strip Length 22*, 22D or 22M* .125 (3.18) 20 .188 (4.77) 16 .188 (4.77) 12 .188 (4.77) 8 (Power) .470 (11.94) All dimensions in inches (millimeters in parentheses) Mating Life 500 cycles minimum
Salt Spray Finish A: 48-hour per MIL-STD-1344A method 1001 condition B
Finish B: 500-hour per MIL-STD 1344A method 1001 condition C Finish F: 48-hour per MIL-STD-1344A method 1001 condition B Finish C: 500-hour per MIL-STD 1344A method 1001 condition C Finish W52: 48-hour Heat Finish A: 150°C (302°F)
Finish B: 175°C (347°F) Finish F: 200°C (392°F) 1000-hour to MIL-STD-1344 method 1005 Finish C: 200°C (392°F) Finish W52: 175°C (347°F) Chemical Resistance Lubricating oils, hydraulic fluids, coolants, deicing fluids per MIL-STD-1344A Method 1016 condition A-1
Sine Vibration 30g at ambient temperature with simulated accessory load
Random Vibration 49.5 grms at ambient temperatures
Shock 300g's ±15% half-sine wave magnitude for 3 ±1 milliseconds
EMI-Shielding Effectiveness 100 MHz to 10 GHz - minimum attenuation of 50dB
Contact Type Crimp, fiber optic, co-ax, thermocouple or printed circuit
Number of Circuits 2 to 128
Contact Insertion Rear-insertion/rear-extraction with simple plastic or high-quality metal hand tools.
Contact Retention Per MIL-DTL-38999L tested to MIL-STD-1344A method 2007
Contact Axial Load Newtons ±10% Axial Load Pounds ±10% 22*, 22D, 22M* 44 10 20 67 15 16 111 25 12 111 25 8 (Co-ax, Twinax, Power) 111 25 Polarization Three-point bayonet coupling, five keyways with optional master keyway rotations, note insert and four fixed minor keyways.
Approvals MIL-DTL-38999L
* Inactive for new designs AMPHENOL LJT SERIES CROSS-SECTION
|
|
AMPHENOL LJT SERIES APPLICATIONS
|
|
STEP 1: STYLEAMPHENOL LJT SERIES MILITARY PART NUMBER EXAMPLE
1 2 3A 4 3B 5 6 7 MS27468 T 25 F 35 P A -LC SHELL STYLE CLASS SIZE PLATING LAYOUT CONTACT POLARI- MODIFIER WHEN CHOOSING LAYOUT: First Number = Step 3A - Shell Size, Dash = Step 4 - Plating, Second Number = 3B - Layout AMPHENOL LJT SERIES COMMERCIAL PART NUMBER EXAMPLE
1 2 3 5 6 4* 7 LJT07 RE- 25-35 P A -014 -LC SHELL STYLE CLASS LAYOUT CONTACT POLARIZATION PLATING* MODIFIER
Click here to download full pdf
STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
MS27466
MS27656
MS27467
MS27496E
MS27505E
MS27468
(LJTP01R) STEP 2: CLASSSTEP 2: SELECT CLASS
 E° = No rear accessories P° = Potting ring and cup T° = No rear accessories, NOT used on MS27505E & MS27496E RE = No rear accessories RP = Potting ring and cup RT = No rear accessories, NOT used on LJT02RE & LJTP02RE RGF = Electroless nickel-plated ground-plane aluminum 200°C RGW = Olive drab cadmium-plated ground-plane aluminum °Military - Most Popular STEP 3: LAYOUTSTEP 3: SELECT LAYOUT
Contacts Specials Layout Service Rating Total 22D 22M 22 20 16 12 8 4 2/0 12* 10 8* 8** 9-6 M 6 6 9-35 M 6 6 9-45 M 4 4 9-98 I 3 3 11-2G I 2 2 11-4 I 4 4 11-5 I 5 5 11-12(11-01) 1 1 11-13 M 13 13 11-35 M 13 13 11-98 I 6 6 11-99 I 7 7 13-3P● II 3 3 13-4G I 4 4 13-8 I 8 8 13-22 M 22 22 13-26 M 8 6 2 13-35 M 22 22 13-98 I 10 10 15-4● I 4 4 15-5G II 5 5 15-15 I 15 14 1 15-18 I 18 18 15-19 I 19 19 15-35 M 37 37 15-37 M 37 37 15-68● I 8 8 15-97 I 12 8 4 17-2 M 39 38 1 17-6 I 6 6 17-8G II 8 8 17-13● I 13 13 17-22● Co-ax 4 2 2 17-25● M 24 22 2 17-26 I 26 26 17-35 M 55 55 17-42● M 42 42 17-55 M 55 55 17-75● I 2 2 17-99 I 23 21 2 19-11G II 11 11 19-18 M 18 14 4 19-28 28 26 2 4 19-30P● I 30 29 1 19-32 I 32 32 19-35 M 66 66 19-35 M 66 66 19-53P● M 53 53 19-66 M 66 66 19-67● M 67 67 19-68● I 18 18 21-1 M 79 79 21-2● M 65 65 21-11 I 11 11 21-16G II 16 16 21-35 M 79 79 21-39 I 39 37 2 21-41 I 41 41 21-48 4 4 21-75 N 4 4 (See Note 4) 21-79● II 19 17 4 (See Note 4) 23-1 M 100 100 23-2 M 85 85 6 23-6P●G M 6 23-14● I 14 14 23-21G II 21 21 23-32P● I 32 32 23-35 M 100 100 23-53 I 53 53 23-55 I 55 55 23-P1(23-01) 1 1 25-1 M 128 128 25-2 M 100 100 25-4 I 56 48 8 25-7● M 99 97 2 25-11S● N 11 2 9 25-19 I 19 19 25-20● N 30 10 13 4 3 25-24G I 24 12 12 25-29G I 29 29 25-35 M 128 128 ●25-37 I 37 37 25-43 I 43 23 20 25-46 I 46 40 4 (See Note 6) 25-61 I 61 61 25-1AC(24-44) M 8 4 4 (4) MS Connector 21-75 is supplied with four size-8 twinax contacts. Proprietary connector 21-75 is supplied with four size-8 co-ax contacts. (5) MS connector 21-79 has provision for two size-8 co-ax contacts. Co-ax contacts are not supplied unless specified by customer. (6)25-46 is supplied two size-8 co-ax contacts for RG180/U & RG195/U cable. ● Not QPL'd  Not Tooled for RP or 02RE* Co-ax ** Twinax P = Pin insert only S = Socket insert only G = Grounded NOTE: Coaxial type contacts are only rated for 175°C (347°F). Contact us for more information. Read Less LAYOUTS BY NUMBER OF CONTACTS
View of Mating-Face of Pin Insert
Drawing not to scale; mating face view of pin insert shown (socket view is opposite) Contacts 1 2 3 4
Layout 11-12 23-P1 (23-01) 9-22 11-2 17-75● 9-98 13-3P● 9-44 11-4 # of Contacts 1-#12 1-#00 2-#20 2-#16 2-#8** 3-#20 3-#16 4-#22 4-#20 Service Rating - - I I I I II M I Contacts 4 5
Layout 13-4G 15-4● 17-22● 21-48 21-75 11-5 15-5G # of Contacts 4-#16 4-#12 2-#12* 2-#8* 4-#8 Power 4-#8** 5-#20 5-#16 Service Rating I I CO-AX - N I II Contacts 6 7 8
Layout 9-6 9-35 11-98 17-6 23-6P●G 11-99 13-8 13-26 # of Contacts 6-#22M 6-#22D 6-#20 6-#12 6-#8** 7-#20 8-#20 6-#22D, 2-#12 Service Rating M M I I M I I M Contacts 8 10 11
Layout 15-68● 17-8G 25-1A (24-44) 13-98 11-#16 # of Contacts 8-#16 8-#16 4-#16, 4-#4 10-#20 11-#16 Service Rating I II M I II Contacts 11 12 13
Layout 21-11 25-11S● 15-97 11-13 11-35 17-13● # of Contacts 11-#12 2-#20, 9-#10* 8-#20, 4-#16 13-#22M 13-#22D 13-#16 Service Rating I N I M M I Contacts 14 15 16 18
Layout 23-14● 15-15 21-16G 15-18 19-18 # of Contacts 14-#12 14-#20, 1-#16 16-#16 18-#20 14-#22D, 4-#8** Service Rating I I II I M Contacts 18 19 21
Layout 19-68P● 15-19 21-79● 25-19 23-21G # of Contacts 18-#16 19-#20 17-#22D, 2-#8* 19-#12 21-#16 Service Rating I I II I II Contacts 22 23 24 26
Layout 13-22 13-35 17-99 17-25● 25-24G 17-26 # of Contacts 22-#22M 22-#22D 21-#20, 2-#16 22-#22D, 2-#8 12-#16, 12-#12 26-#20 Service Rating M M I M I I Contacts 28 29 30
Layout 19-28 25-29G 19-30P● 25-20● # of Contacts 26-#20, 2-#16 29-#16 29-#20, 1-#16 10-#20, 13-#16, 4-#12*, 3-#8** Service Rating I I I I Contacts 32 36 37
Layout 19-32 23-32P● 23-36● 15-35 15-37 # of Contacts 32-#20 32-#20 36-#20 37-#22D 37-#22M Service Rating I I I M M Contacts 37 39 41 42
Layout 25-37● 17-2 21-39 21-41 17-42● # of Contacts 37-#16 38-#22D, 1-#8** 37-#20, 2-#16 41-#20 42-#22 Service Rating I M I I M Contacts 43 46 53
Layout 25-43 25-46 19-53P● 23-53 # of Contacts 23-#20, 20-#16 40-#20, 4-#16, 2-#8* 53-#22 53-#20 Service Rating I I M I Contacts 55 56 61
Layout 17-35 17-55 23-55 25-4 25-61 # of Contacts 55-#22D 55-#22M 55-#20 48-#20, 8-#16 61-#20 Service Rating M M I I I Contacts 65 66 67 79
Layout 21-2● 19-35 19-66 19-67P● 21-1 # of Contacts 65-#22 66-#22D 66-#22M 67-#22M 79-#22M Service Rating M M M M M Contacts 79 85 99 100
Layout 21-35 23-2 25-7● 23-1 # of Contacts 79-#22D 85-#22 97-#22D, 2-#8** 100-#22M Service Rating M M M M Contacts 100 128
Layout 23-35 25-2 25-1 25-35 # of Cotacts 100-#22D 100-#22 128-#22M 128-#22D Service Rating M M M M ● Not QPL'd Not Tooled for RP or 02RE* Co-ax ** Twinax P = Pin insert only S = Socket insert only G = Grounded NOTE: Coaxial type contacts are only rated for 175°C (347°F). Contact us for more information. Read Less STEP 4: PLATINGSTEP 4: SELECT PLATING
Finish Military Commercial Commercial +SR Cadmium-plated nickel base A - SR Olive drab cadmium- plated nickel base B 014 386 Electroless nickel F 023 424 Electroless nickel space-compatible - 453 467 Anodic coating (Alumilite) C 005 300 Chromate-tested (Iridite 14-2) - 011 344 Passivated steel (Hermetic only) E - - Stainless steel - 135 - Olive drab zinc cobalt - W52 - SR = Strain Relief STEP 5: CONTACTSTEP 5: SELECT CONTACT
P = Pin J = 1500 Mating Cycles Socket STEP 6: POLARIZATIONSTEP 6: SELECT POLARIZATION
Shell Size N A B C D 9 95 77 - - 113 11 95 81 67 123 109 13 95 75 63 127 115 15 95 74 61 129 116 17 95 77 65 125 113 19 95 77 65 125 113 21 95 77 65 125 113 23 95 80 69 121 110 25 95 80 69 121 110 STEP 7: MODIFIERSTEP 7: SELECT MODIFIER
Note: LC is not marked on partOmit for standard contacts LC = less contacts, wire hole fillers and plastic insertion/extraction tool. (Purchase Order must state Less Contacts) |
|
STEP 1: STYLEAMPHENOL LJT SERIES MILITARY PART NUMBER EXAMPLE
1 2 3 4 5 6 7 8 9 HE308 07 T 1535 P N 7 M L PREFIX SHELL STYLE CLASS LAYOUT CONTACT POLARIZATION FINISH MANDATORY MODIFIER
Click here to download full pdf
STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
00 01 06
07 11 STEP 3: LAYOUTSTEP 3: SELECT LAYOUT
Contacts Specials Layout Service Rating Total 22D 22M 22 20 16 12 12* 10 8* 8** 8 4 00 9-22 I 2 2 9-35 M 6 6 9-98 I 3 3 11-02 I 2 2 11-04 I 4 4 11-05 I 5 5 11-01 - 1 1 11-35 M 13 13 11-98 I 6 6 11-99 I 7 7 13-04 I 4 4 13-08 I 8 8 13-26 M 8 6 2 13-35 M 22 22 13-98 I 10 10 15-04 I 4 4 15-05 II 5 5 15-15 I 15 14 1 15-18 I 18 18 15-19 I 19 19 15-35 M 37 37 15-97 I 37 8 4 17-02 M 39 38 1 17-06 I 6 6 17-08 II 8 8 17-25 M 24 22 2 17-26 I 26 26 17-35 M 55 55 17-75 I 2 17-99 I 23 21 2 19-11 II 11 11 19-18 M 18 14 4 19-28 I 28 26 2 19-32 I 32 32 19-35 M 66 66 21-11 I 11 11 21-16 II 16 16 21-35 M 79 79 21-39 I 39 37 2 21-41 I 41 41 21-48 - 4 4 21-75 N 4 (See Note 4) 21-79 II 19 17 (See Note 5) 23-01 M - 1 1 23-21 II 21 21 23-35 M 100 100 23-53 I 53 53 23-55 I 55 55 25-04 I 56 48 8 25-07 M 99 97 2 25-19 I 19 19 25-24 I 24 12 12 25-29 I 29 29 25-35 M 128 128 25-37 I 37 37 25-43 I 43 23 20 25-46 I 46 40 4 2 25-61 I 61 61 25-44 M 8 4 4 (4) MS Connector 21-75 is supplied with four size-8 twinax contacts. Proprietary connector 21-75 is supplied with four size-8 coax contacts. (5) MS connector 21-79 has provision for two size-8 coax contacts. Coax contacts are not supplied unless specified by customer. ● Not QPL'd Not Tooled for RP or 02RE* Coax ** Twinax P = Pin insert only S = Socket insert only G = Grounded Contact us for more information. Read Less LAYOUTS BY NUMBER OF CONTACTS
View of Mating-Face of Pin Insert
Drawing not to scale; mating face view of pin insert shown (socket view is opposite) Contacts 1 2 3 4
Layout 11-12 23-P1 (23-01) 9-22 11-2 17-75 9-98 13-3P● 9-44 11-4 # of Contacts 1-#12 1-#00 2-#20 2-#16 2-#8** 3-#20 3-#16 4-#22 4-#20 Service Rating - - I I I I II M I Contacts 4 5
Layout 13-4G 15-4● 17-22● 21-48 21-75 11-5 15-5G # of Contacts 4-#16 4-#12 2-#12* 2-#8* 4-#8 Power 4-#8** 5-#20 5-#16 Service Rating I I COAX - N I II Contacts 6 7 8
Layout 9-6 9-35 11-98 17-6 23-6P●G 11-99 13-8 13-26 # of Contacts 6-#22M 6-#22D 6-#20 6-#12 6-#8** 7-#20 8-#20 6-#22D, 2-#12 Service Rating M M I I M I I M Contacts 8 10 11
Layout 15-68● 17-8G 25-1A (24-44) 13-98 11-#16 # of Contacts 8-#16 8-#16 4-#16, 4-#4 10-#20 11-#16 Service Rating I II M I II Contacts 11 12 13
Layout 21-11 25-11S● 15-97 11-13 11-35 17-13● # of Contacts 11-#12 2-#20, 9-#10* 8-#20, 4-#16 13-#22M 13-#22D 13-#16 Service Rating I N I M M I Contacts 14 15 16 18
Layout 23-14● 15-15 21-16G 15-18 19-18 # of Contacts 14-#12 14-#20, 1-#16 16-#16 18-#20 14-#22D, 4-#8** Service Rating I I II I M Contacts 18 19 21
Layout 19-68P● 15-19 21-79● 25-19 23-21G # of Contacts 18-#16 19-#20 17-#22D, 2-#8* 19-#12 21-#16 Service Rating I I II I II Contacts 22 23 24 26
Layout 13-22 13-35 17-99 17-25● 25-24G 17-26 # of Contacts 22-#22M 22-#22D 21-#20, 2-#16 22-#22D, 2-#8 12-#16, 12-#12 26-#20 Service Rating M M I M I I Contacts 28 29 30
Layout 19-28 25-29G 19-30P● 25-20● # of Contacts 26-#20, 2-#16 29-#16 29-#20, 1-#16 10-#20, 13-#16, 4-#12*, 3-#8** Service Rating I I I I Contacts 32 36 37
Layout 19-32 23-32P● 23-36● 15-35 15-37 # of Contacts 32-#20 32-#20 36-#20 37-#22D 37-#22M Service Rating I I I M M Contacts 37 39 41 42
Layout 25-37● 17-2 21-39 21-41 17-42● # of Contacts 37-#16 38-#22D, 1-#8** 37-#20, 2-#16 41-#20 42-#22 Service Rating I M I I M Contacts 43 46 53
Layout 25-43 25-46 19-53P● 23-53 # of Contacts 23-#20, 20-#16 40-#20, 4-#16, 2-#8* 53-#22 53-#20 Service Rating I I M I Contacts 55 56 61
Layout 17-35 17-55 23-55 25-4 25-61 # of Contacts 55-#22D 55-#22M 55-#20 48-#20, 8-#16 61-#20 Service Rating M M I I I Contacts 65 66 67 79
Layout 21-2● 19-35 19-66 19-67P● 21-1 # of Contacts 65-#22 66-#22D 66-#22M 67-#22M 79-#22M Service Rating M M M M M Contacts 79 85 99 100
Layout 21-35 23-2 25-7● 23-1 # of Contacts 79-#22D 85-#22 97-#22D, 2-#8** 100-#22M Service Rating M M M M Contacts 100 128
Layout 23-35 25-2 25-1 25-35 # of Cotacts 100-#22D 100-#22 128-#22M 128-#22D Service Rating M M M M ● Not QPL'd Not Tooled for RP or 02RE* Coax ** Twinax P = Pin insert only S = Socket insert only G = Grounded Contact us for more information. Read Less STEP 5: POLARIZATIONSTEP 5: SELECT POLARIZATION
Shell Size N A B C D 9 95 77 - - 113 11 95 81 67 123 109 13 95 75 63 127 115 15 95 74 61 129 116 17 95 77 65 125 113 19 95 77 65 125 113 21 95 77 65 125 113 23 95 80 69 121 110 25 95 80 69 121 110 STEP 6: FINISHSTEP 6: SELECT SHELL FINISH
7 = Olive drab cadmium-plated 6 = Electroless nickel-plated STEP 8: MODIFIERSTEP 8: MODIFIER
Leave blank for connector delivered WITH contacts L = Connector delivered WITHOUT contacts |
|

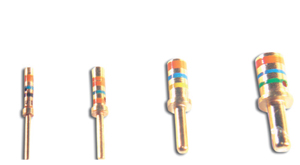

CONTACTSAMPHENOL LJT SERIES CONTACTS - PINS
Color Bands Wire Range Contact Size Wire Size AWG Pin Contact 1 2 3 Wire Strip Lengths Min. Max. Wire Hole Filler Color 22D 22,24,26 & 28 M39029/58-360 M39029/107-620# Orange Blue Blue Red Black Black .125 (3.18) .030 (0.76) .054 (1.37) MS27488-22-2 Black 22M♦ 24,26 & 28 M39029/58-361 Orange Blue Brown .125 (3.18) .030 (0.76) .050 MS27488-22-2 Black 22♦ 22,24 & 26 M39029/58-362 Orange Blue Red .125 (3.18) .034 (0.86) .060 (1.52) MS27488-22-2 Black 20 20,22 & 24 M39029/58-363 M39029/107-621# Orange Blue Blue Red Orange Brown .188 (4.77) .040 (1.02) .083 (2.11) MS27488-20-2 Red 16 16,18 & 20 M39029/58-364 M39029/107-622# Orange Blue Blue Red Yellow Red .188 (4.77) .065 (1.65) .083 (2.77) MS27488-16-2 Blue 12 12 & 14 M39029/58-365 M39029/107-623# Orange Blue Blue Red Green Orange .188 (4.77) .097 (2.46) .142 (3.61) MS27488-12-2 Yellow 10 10 & 12 Co-ax* M39029/58-528 Green Red Gray .355 (8.51) .135 (3.42) .162 (4.12) M85049/ Green 8 8 Co-ax* Twinax**
M39029/90-529
Green
Red
White Detailed Instructions included with contacts .135 (3.42) .124 (3.15) .162 (4.12) .134 (3.40)
MS27488-8-3
Red 8 Power 8 10-497448-075 - - - .470 (11.94) .135 (3.42) .162 (4.12) MS27488-8-3 Red 8 Power 10 10-497448-095 - - - .470 (11.94) .135 (3.42) .162 (4.12) MS27488-8-3 Red AMPHENOL LJT SERIES CONTACTS - SOCKETS
Color Bands Wire Range Contact Size Wire Size AWG Socket Contact 1 2 3 Wire Strip Lengths Min. Max. Wire Hole Filler Color 22D 22,24,26 & 28 M39029/65-348 M39029/106-614# Orange Blue Yellow Brown Gray Yellow .125 (3.18) .030 (0.76) .054 (1.37) MS27488-22-2 Black 20 20,22 & 24 M39029/56-351 M39029/106-615# Orange Blue Green Brown Brown Green .188 (4.77) .040 (1.02) .083 (2.11) MS27488-20-2 Red 16 16,18 & 20 M39029/56-352 M39029/106-616# Orange Blue Green Brown Red Blue .188 (4.77) .065 (1.65) .109 (2.77) MS27488-16-2 Blue 12 12 & 14 M39029/56-353 M39029/106-617# Orange Blue Green Brown Orange Violet .188 (4.77) .097 (2.46) .142 (3.61) MS27488-12-2 Yellow 10 10 & 12 M39029/56-527 Green Red Violet .355 (8.51) .135 (3.42) .162 (4.12) M85049/ Green 8 8 Co-ax* Twinax** M39029/59-366 M39029/91-530
Green
Orange
Black
.135 (3.42) .124 (3.15) .162 (4.12) .134 (3.40)
MS27488-8-3
Red 8 Power 8 10-497448-075 - - - .470 (11.94) .135 (3.42) .162 (4.12) MS27488-8-3 Red 8 Power 10 10-497448-095 - - - .470 (11.94) .135 (3.42) .162 (4.12) MS27488-8-3 Red Contact Color Codes 0 Black 1 Brown 2 Red 3 Orange 4 Yellow 5 Green 6 Blue 7 Violet 8 Gray 9 White # 1500 Mating Cycle Contacts * Co-ax ** Twinax, Contact us for details. ♦ Inactive for new design For fibre optic contacts, please contact us. All dimensions in inches (millimeters in parentheses) CONTACT TOOLSAMPHENOL LJT SERIES CONTACT TOOLS - PINS
Contact Size Hand-Crimp Tool Power-Crimp Tool Turret Heads Use Locator Plastic Insertion/ Extraction Tool Insertion Tip Color Extraction Tip Color Metal Insertion Tool Color Band Metal Extraction Tool Color Band 1 Color Band 2 22D M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 22M♦ M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 22♦ M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 20 M22520/ WA27ƗƗ M22520/ Red M81969/ Red Orange MS27495 Blue MS27495 Blue White 16 M22520/ WA27ƗƗ M22520/ Blue M81969/ Blue White MS27495 Green MS27495 Green White 12 M22520/ WA27ƗƗ M22520/ Yellow M81969/ Yellow White DAK95-12B - DRK95-12B - - 10 TP-201423 or 1716P-1 - - - M81969/ Gray White M81969/ Green M81969/ Green White 8 Co-ax M22520/ WA22ƗƗ
HX23 M22520/ M81969/ Green - - DRK264-8 - - 8 M22520/ WA22ƗƗ HX23 K709 (inner) M81969/ Green M81969/ Red M81969/ - - 8 - 400B-1 414DA- - M81969/ - Green - - DRK264-8 - - 8 M3SP-6 400B-1 414DA- - M81969/ - Green - - DRK264-8 - - AMPHENOL LJT SERIES CONTACT TOOLS - SOCKETS
Contact Size Hand-Crimp Tool Power-Crimp Tool Turret Heads Use Locator Plastic Insertion/ Extraction Tool Insertion Tip Color Extraction Tip Color Metal Insertion Tool Color Band Metal Extraction Tool Color Band 1 Color Band 2 22D M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 20 M22520/ WA27ƗƗ M22520/ Red M81969/ Red Orange MS27495 Red MS27495 Blue White 16 M22520/ WA27ƗƗ M22520/ Blue M81969/ Blue White MS27495 Blue MS27495 Blue White 12 M22520/ WA27ƗƗ M22520/ Yellow M81969/ Yellow White DAK95-12B - DRK95-12B - - 10 TP-201423 or 1716P-1 - - - M81969/ Gray White M81969/ Green M81969/ Green White 8 M22520/ WA22ƗƗ
HX23 M22520/ M81969/ Green - - DRK264-8 - - 8 M22520/ WA22ƗƗ HX23 K709 (inner) M81969/ Green M81969/ Red M81969/ - - 8 - 400B-1 414DA-8N(Die) 4691 (positioner) - M81969/ - Green - - DRK264-8 - - 8 M3SP-6 400B-1 414DA- - M81969/ - Green - - DRK264-8 - - Contact Color Codes 0 Black 1 Brown 2 Red 3 Orange 4 Yellow 5 Green 6 Blue 7 Violet 8 Gray 9 White ƗƗ Contact us for more tool accessories. CO-AX CONTACTSAMPHENOL LJT SERIES CO-AX CONTACTS
Co-ax Pin Co-ax Socket Crimping Tools
Co-ax Contact Size Cable Type Contact Part Number Contact Part Number Crimping Tools Crimping Tools
RG-178B/U, RG-174A/U, 21-033122-564
21-033123-564
RG-174A/U, RG-180B/U,
21-033122-541
21-033123-541
M22520/5-01 w/ die set M22520/5-05 (A)or M22520/5-19 (B) or M22520/10-01 w/ die set M22520/10-07 (A) M22520/5-01 w/ die set M22520/5-05 (B) or M22520/5-41 (B) or M22520/10-01 w/ die set M22520/10-07 (B)
M22520/2-01 w/ Positioner M22520/2-10
M22520/5-01 w/ die set M22520/5-45 (A)
Insertion / Extraction Tools Wire Strip Length Wire Sealing Range Co-ax Contact Size Installation Tools Installation Wire Strip Lengths Wire Sealing Range Wire Sealing Range 16 M81969/8-07 or M81969/8-08 or Contact us for details .065 (1.65) .109 (2.77) 12 M81969/8-09 or M81969/8-10 or Contact us for details .097 (2.46) .142 (3.61) 8 Hand insertion M81969/14-12 or Contact us for details .135 (3.43) .155 (3.94) All dimensions in inches (millimeters in parentheses) PCB CONTACTSAMPHENOL LJT SERIES PRINTED CIRCUIT BOARD CONTACTS - PIN
Contact Stickout Max. / Min. PCB Pin Contacts Size Tail Diameter +/- .001 MS27466 LJT00RT MS27656 LJTPQ00RT MS27496 LJT02RE MS27505 LJTP02RE MS27467 LJT06RE MS27468 LJT07RE MS27468 LJT07RE 10-407552-015 22M 0.019 .372 / .317 .357 / .302 .576 / .521 .576 / .520 .372 / .317 .351 / .296 .329 / .279 10-407552-055 22M 0.019 .261 / .206 .246 / .191 .465 / .410 .465 / .409 .261 / .206 .240 / .185 .218 / .168 10-407552-085 22M 0.019 .097 / .047 .082 / .032 .301 / .251 .301 / .250 .097 / .047 .076 / .026 .054 / .009 10-407552-115 22M 0.019 .035 / NS .020 / NS .239 / .189 .239 / .188 .035 / NS .014 / NS NS 10-497640-015 20 0.019 .385 / .335 .370 / .320 .589 / .539 .589 / .538 .385 / .335 .364 / .314 .342 / .297 10-497640-025 20 0.019 .250 / .200 .235 / .185 .454 / .404 .454 / .403 .250 / .200 .229 / .179 .207 / .162 10-497640-045 20 0.019 NS NS .191 / .141 .191 / .141 NS NS NS 10-497596-015 20 0.025 .095 / .049 .080 / .034 .299 / .253 .299 / .252 .095 / .049 .074 / .028 .052 / .011 10-497596-025 20 0.025 .185 / .139 .170 / .124 .389 / .343 .389 / .342 .185 / .139 .164 / .118 .142 / .101 10-497596-035 20 0.025 .266 / .220 .251 / .205 .470 / .424 .470 / .423 .266 / .220 .245 / .119 .223 /.182 10-497596-055 20 0.025 .383 / .337 .368 / .322 .587 / .541 .587 / .540 .383 / .337 .362 / .316 .340 / .299 10-497695-015 16 0.040 .292 / .242 .277 / .227 .496 / .446 .496 / .445 .292 / .242 .271 / .221 .249 / .204 10-497630-035 16 0.062 .097 / .047 .082 / .032 .301 / .251 .301 / .250 .385 / .335 .076 / .026 .054 / .009 10-497630-055 16 0.062 .296 / .250 .281 / .235 .454 / .401 .454 / .401 .232 / .182 .229 / .175 .207 / .158 10-497630-055 16 0.062 .296 / .250 .281 / .235 .454 / .401 .454 / .401 .232 / .182 .229 / .175 .207 / .158 10-597502-015 12 0.081 .265 / .215 .250 / .200 .469 / .410 .469 / .418 .265 / .215 .244 / .194 .222 / .177 = Standard PC tail used AMPHENOL LJT SERIES PRINTED CIRCUIT BOARD CONTACTS - SOCKET
Contact Stickout Max. / Min. PCB Pin Contacts Size Tail MS27466 LJT00RT MS27656 LJTPQ00RT MS27496 LJT02RE MS27505 LJTP02RE MS27467 LJT06RE MS27468 LJT07RE MS27468 LJT07RE 10-597878-011 22M 0.019 .328 / .263 .313 / .248 .532 / .467 .532 / .466 .328 / .263 .307 / .424 .285 / .225 10-597878-331 22M 0.019 .264 / .199 .249 / .188 .468 / .406 .468 / .405 .264 / .199 .243 / .182 .221 / .165 10-497623-025 22M 0.019 .905 / .840 .890 / .825 1.109 / 1.044 1.109 / 1.043 .905 / .840 .884 / .819 .862 / .802 10-597878-031 22M 0.019 .385 / .320 .370 / .305 .589 / .524 .589 / .523 .385 / .320 .364 / .299 .342 / .282 10-597878-041 22M 0.019 .245 / .180 .230 / .165 .449 / .384 .449 / .383 .245 / .180 .224 / .159 .202 / .142 10-597878-071 22M 0.019 .183 / .118 .168 / .103 .387 / .322 .387 / .321 .183 / .118 .162 / .097 .140 / .080 10-497623-145 22M 0.019 .646 / .576 .631 / .561 .850 / .780 .850 / .779 .646 / .576 .625 / .555 .603 / .538 10-597878-151 22M 0.019 .460 / .395 .445 / .380 .664 / .599 .664 / .598 .460 / .395 .439 / .374 .417 / .357 10-497643-015 20 0.019 .385 / .339 .370 / .316 .589 / .535 .589 / .536 .385 / .331 .364 / .310 .342 / .293 10-497643-025 20 0.019 .250 / .204 .235 / .181 .454 / .400 .454 / .401 .250 / .196 .229 / .175 .207 / .15 10-497643-035 20 0.019 .592 / .546 .577 / .523 .796 / .742 .796 / .743 .592 / .538 .571 / .517 .549 / .500 10-497650-015 16 0.040 .292 / .246 .277 / .223 .496 / .442 .496 / .443 .292 / .238 .271 / .217 .249 / .200 10-597503-015 12 0.081 .221 / .175 .206 / .152 .425 / .371 .425 / .372 .221 / .167 .200 / .146 .178 / .129 = Standard PC tail used |
|

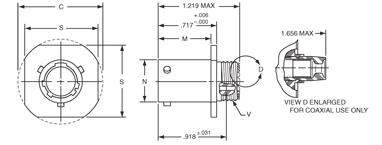

AMPHENOL LJT SERIES DIMENSIONS - RECEPTACLES
LJT00RP (MS27466P) LJT00RE (MS27466E)
LJT00RT (MS27466T) HE30800T L Max. L1 Max. M +.000 / -.005 Shell Size F ±.010 MS27466/ LJT00R MS27656/ LJTPQ00R MS27656/ LJTPQ00R MS27466/ LJT00R MS27656/ LJTPQ00R N DIA. +.001/ -.005 R (TP) 9 0.444 0.813 0.453 0.641 0.632 0.820 0.572 0.719 11 0.558 0.813 0.453 0.641 0.632 0.820 0.700 0.812 13 0.682 0.813 0.453 0.641 0.632 0.820 0.850 0.906 15 0.808 0.813 0.453 0.641 0.632 0.820 0.975 0.969 17 0.909 0.813 0.453 0.641 0.632 0.820 1.100 1.062 19 1.034 0.813 0.453 0.641 0.632 0.820 1.207 1.156 21 1.159 0.906 0.484 0.672 0.602 0.790 1.332 1.250 23 1.284 0.906 0.484 0.672 0.602 0.790 1.457 1.375 23 1.409 0.906 0.484 0.672 0.602 0.790 1.582 1.500 LJTPQ00RP (MS27656P) LJTPQ00RE (MS27656E)
LJTPQ00RT (MS27656T) S Dimension KK Dimension Max. Shell Size MS27466/ LJT00R ±.016 MS27656/ LJTPQ00R +.011/-.010 T DIA. ±.005 (±.127) MS27466/ LJT00R MS27656/ LJTPQ00 V Thread Class 2A (Plated) Z Max. MS27466/ LJTPQ00R SS Dia. MS27466/ LJTPQ00R 9 0.938 0.938 0.128 0.608 0.625 .4375-28 0.138 0.662 11 1.031 1.031 0.128 0.734 0.750 .5625-24 0.138 0.810 13 1.125 1.125 0.128 0.858 0.750 .6875-24 0.138 0.960 15 1.219 1.219 0.128 0.984 1.000 .8125-20 0.138 1.085 17 1.312 1.312 0.128 1.110 1.125 .9375-20 0.138 1.210 19 1.438 1.438 0.128 1.234 1.250 1.0625-18 0.138 1.317 21 1.562 1.562 0.128 1.360 1.375 1.875-18 0.168 1.442 23 1.688 1.688 0.147 1.484 1.500 1.3125-18 0.168 1.567 25 1.812 1.812 0.147 1.610 1.625 1.4375-18 0.168 1.692 LJT01RE / LJT01RT / HE30801T Shell Size C Max. M N S V Thread Class 2A (Plated) 9 1.094 0.632 0.572 0.938 .4375-28 UNEF 11 1.118 0.632 0.700 1.031 .5625-24 UNEF 13 1.1281 0.632 0.850 1.125 .6875-24 UNEF 15 1.375 0.632 0.975 1.219 .8125-20 UNEF 17 1.469 0.632 1.100 1.312 .9375-20 UNEF 19 1.594 0.632 1.207 1.438 1.0625-18 UNEF 21 1.719 0.602 1.332 1.562 1.1875-18 UNEF 23 1.844 0.602 1.457 1.688 1.3125-18 UNEF 25 1.969 0.602 1.582 1.812 1.4375-18 UNEF LJT06RP (MS27467P) LJT06RE (MS27467E) / LJT06RT (MS27467T) HE30806T
Shell Size F ± .010. L Max. Q . KK Diameter Max. V Thread Class 2A (PLATED) 9 0.444 1.531 0.844 0.608 .4375-28 UNEF 11 0.558 1.531 0.969 0.734 .5625-24 UNEF 13 0.683 1.531 1.141 0.858 .6875-24 UNEF 15 0.808 1.531 1.266 0.984 .8125-20 UNEF 17 0.909 1.531 1.391 1.110 .9375-20 UNEF 19 1.034 1.531 1.500 1.234 1.0625-18 UNEF 21 1.159 1.625 1.625 1.360 1.1875-18 UNEF 23 1.284 1.625 1.750 1.484 1.3125-18 UNEF 25 1.409 1.625 1.875 1.610 1.4375-18 UNEF LJT02RE (MS27496E) LJTP02RE (MS27505E) Shell Size L Max. M M1 N Diameter +.001/ P Max. R (TP) S T Diameter Z ±.031 (±.787) KK Diameter SS Diameter 9 0.203 0.632 0.820 0.572 0.234 0.719 0.938 0.128 0.107 0.433 0.662 11 0.203 0.632 0.820 0.700 0.234 0.812 1.031 0.128 0.107 0.557 0.810 13 0.203 0.632 0.820 0.850 0.234 0.906 1.125 0.128 0.107 0.676 0.960 15 0.203 0.632 0.820 0.975 0.234 0.969 1.219 0.128 0.107 0.801 1.085 17 0.203 0.632 0.820 1.100 0.234 1.062 1.312 0.128 0.107 0.926 1.210 19 0.203 0.632 0.820 1.207 0.234 1.156 1.438 0.128 0.107 1.032 1.317 21 0.234 0.602 0.790 1.332 0.204 1.250 1.562 0.128 0.137 1.157 1.442 23 0.234 0.602 0.790 1.457 0.204 1.375 1.688 0.147 0.137 1.282 1.567 25 0.234 0.602 0.790 1.582 0.193 1.500 1.812 0.147 0.137 1.407 1.692
LJT07RP (MS27468P LJT07RE (MS27468E) Shell Size A• +.000/ C Max. F ± .010 H Hex. +.017/ L Max. N +.001/ S ±.016 (±.406) T• +.010/ V Thread Class 2A (Plated) KK Diameter Max. RR Thread Class 2A (Plated) 9 0.669 1.199 0.444 0.875 0.625 0.572 1.062 0.697 .4375-28 UNEF 0.608 .6875-24 UNEF 11 0.769 1.386 0.558 1.000 0.625 0.700 1.250 0.822 .5625-24 UNEF 0.734 .8125-20 UNEF 13 0.955 1.511 0.683 1.188 0.625 0.850 1.375 1.007 .6875-24 UNEF 0.858 1.0000-20 UNEF 15 1.084 1.636 0.808 1.312 0.625 0.975 1.500 1.134 .8125-20 UNEF 0.984 1.1250-18 UNEF 17 1.208 1.761 0.909 1.438 0.625 1.100 1.625 1.259 .9375-20 UNEF 1.110 1.2500-18 UNEF 19 1.333 1.949 1.034 1.562 0.656 1.207 1.812 1.384 1.0625-18 UNEF 1.234 1.3750-18 UNEF 21 1.459 2.073 1.159 1.688 0.750 1.207 1.332 1.938 1.1875-18 UNEF 1.360 1.5000-18 UNEF 23 1.580 2.199 1.284 1.812 0.750 1.457 2.062 1.634 1.3125-18 UNEF 1.484 1.6250-18 UNEF 25 1.709 2.323 1.409 2.000 0.750 1.582 2.188 1.759 1.4375-18 UNEF 1.610 1.7500-18 UNS • “D” shaped mounting hole dimensions All dimensions in inches (millimeters in parentheses) |
|
AMPHENOL LJT SERIES ACCESSORIES
Receptacle Dust Caps LJT Shell Size Dummy Receptacles For Flanged For Jam Nut Plug Cap 9 M38999/9-9B MS27502**9C MS27502**9N MS27501**9C 11 M38999/9-11B MS27502**11C MS27502**11N MS27501**11C 13 M38999/9-13B MS27502**13C MS27502**13N MS27501**13C 15 M38999/9-15B MS27502**15C MS27502**15N MS27501**15C 17 M38999/9-17B MS27502**17C MS27502**17N MS27501**17C 19 M38999/9-19B MS27502**19C MS27502**19N MS27501**19C 21 M38999/9-21B MS27502**21C MS27502**21N MS27501**21C 23 M38999/9-23B MS27502**23C MS27502**23N MS27501**23C 25 M38999/9-25B MS27502**25C MS27502**25N MS27501**25C ** Select code for plating B = Olive Drab Chromate over Cadmium over Nickel (500-Hour Salt Spray) (Most Popular) F = Electroless Nickel (Fluid-Resistant) A = Gold Iridite over Cadmium Nickel C = Hard Anodize
Endbells Cable Range LJT Shell Size Straight, Low-Cost Right-Angle, Low-Cost Min. Max. 9 M85049/49-2-8** M85049/47**8 .098 (2.50) .234 (5.94) 11 M85049/49-2-10** M85049/47**10 .153 (3.89) .234 (5.94) 13 M85049/49-2-12** M85049/47**12 .190 (4.83) .328 (8.33) 15 M85049/49-2-14** M85049/47**14 .260 (6.60) .457 (11.61) 17 M85049/49-2-16** M85049/47**16 .283 (7.19) .614 (15.60) 19 M85049/49-2-18** M85049/47**18 .325 (8.25) .634 (16.10) 21 M85049/49-2-20** M85049/47**20 .343 (8.71) .698 (17.73) 23 M85049/49-2-22** M85049/47**22 .381 (9.68) .823 (20.90) 25 M85049/49-2-24** M85049/47**24 .418 (10.62) .853 (21.67) ** Select code for connector plating W = Olive Drab Chromate over Cadmium over Nickel (1000-Hour Salt Spray) N = Electroless Nickel (Fluid-Resistant) A = Black Anodize All dimensions in inches (millimeters in parenthesis)
LJT Shell Size Self-Locking Endbells, Straight Cable Range, Right-Angle Min. Max. 9 M85049/49-2S8** M85049/47S**8 .098 (2.50) .234 (5.94) 11 M85049/49-2S10** M85049/47S**10 .153 (3.89) .234 (5.94) 13 M85049/49-2S12** M85049/47S**12 .190 (4.83) .328 (8.33) 15 M85049/49-2S14** M85049/47S**14 .260 (6.60) .457 (11.61) 17 M85049/49-2S16** M85049/47S**16 .283 (7.19) .614 (15.60) 19 M85049/49-2S18** M85049/47S**18 .325 (8.25) .634 (16.10) 21 M85049/49-2S20** M85049/47S**20 .343 (8.71) .698 (17.73) 23 M85049/49-2S22** M85049/47S**22 .381 (9.68) .823 (20.90) 25 M85049/49-2S24** M85049/47S**24 .418 (10.62) .853 (21.67) ** Select code for connector plating W = Olive Drab Chromate over Cadmium over Nickel (1000-Hour Salt Spray) N = Electroless Nickel (Fluid-Resistant) S = 300 Series Steel, Passivated Sealed EMI/RFI Orientation Endbell Type Description M85049/62 Y N S Heat Shrink Boot Adapters Designed for use with straight or right angle shrink boots. A knurled rear section with a boot groove provides excellent surface for the boot to grab the metal endbell. Available with lock wire and drain holes. See Heat Shrink Boots. M85049/33 N Y S Shield Termination Back Shell Non-environmental designed for use with jacketed cable. Allow extra space to break out the wires and still provide stain relief clamping to the outside of the cable jacket. M85049/17 Y Y S Extender Back Shell This EMI/RFI-shielding, environmentally-sealed endbell features a standard-style cable clamp with gland seal at the end of an extender-style backshell. M85049/29 N N S Extender Back Shell This EMI/RFI-shielding, non-environmentally-sealed endbell features a standard-style cable clamp. Banding Y Y
Banding Adapter Banding adapters utilize a band of metal that fastens and grounds cable shields to the outside of endbells. This method of terminating shields has advantages in that they typically use tools to tighten and trim the bands. These tools make the termination tight, repeatable, reworkable (if you make a mistake, just cut the band off and start again) and facilitates service. Banding adapters help lower the total applied cost by having simpler designs that have fewer parts with uncomplicated assembly procedures. Custom SAB Custom Designs If the military-standard endbells don’t fit your needs, contact us and we will customize an endbell solution. Most of these customized endbells are typically assembled in 4-8 weeks or sooner! M85049/27 N N S E-Nut Wire seal compression nut All dimensions in inches (millimeters in parentheses) |
|
WIRE STRIPPINGAMPHENOL LJT SERIES WIRE STRIPPING
Wire Size A 22, 22M, 22D .125 (3.18) 20 .188 (4.77) 16 .188 (4.77) 12 .188 (4.77) 10 .355 (8.51) 8 (power) .470 (11.99) All dimensions in inches (millimeters in parentheses) CONTACT CRIMPINGAMPHENOL LJT SERIES CONTACT CRIMPING
Correct
STEP 1: Insert wire into rear of contact. Wire insulation must press against rear of contact. Wire must be visible through inspection hole. STEP 2: M22520 series crimp tool and locator is recommended. Click here for choice of turret head and selection setting according to contact size, part number and wire gauge size. STEP 3: Insert contact and wire into tool jaws. To crimp, squeeze handles together fully until ratchet releases and allows handles to expand; otherwise, contact cannot be extracted from tool jaws. Maintain slight insertion pressure on wire while crimping contact to wire. CONTACT INSERTIONAMPHENOL LJT SERIES CONTACT INSERTION
STEP 1: Remove hardware from plug or receptacle and slip over wire bundle in proper order for reassembly. STEP 2: Using proper plastic or metal insertion tool for corresponding contact, position wire in tip of the tool so that the tool tip presses against the contact shoulder. STEP 3: Press tool against contact shoulder and, with firm and even pressure, insert wired contact and tool tip into center contact cavity.
STEP 4: When contact bottoms, a slight “click” can be heard as tines of metal retaining clip snap into place behind contact shoulder. STEP 5: Remove tool and pull back lightly on wire to make sure contact is properly seated. Repeat operation with remainder of contacts to be inserted, beginning with the center cavity and working outward in alternating rows. STEP 6: After all contacts are inserted, fill any empty cavities with wire sealing plugs. Reassemble plug or receptacle hardware. CONTACT EXTRACTIONAMPHENOL LJT SERIES CONTACT EXTRACTION
STEP 1: Remove hardware from plug or receptacle and slide hardware back along wire bundle. STEP 2: Using plastic or metal extraction tool with proper color code corresponding to contact size, place wire in tool. STEP 3: Insert tool into contact cavity until tool tip bottoms against the contact shoulder, expanding clip retaining tines.
STEP 4: Hold wire firmly in tool and extract wired contact and tool. Repeat operation for all contacts to be extracted. STEP 5: Fill any empty cavities with wire sealing plugs. Reassemble plug or receptacle hardware. |
