Anderson SBE 320 Multipole Connector (Up To 320 Amps)

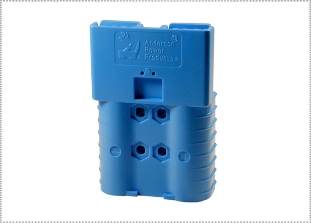

SBE® 320 MULTIPOLE CONNECTOR
(UP TO 320 AMPS)
The innovative Anderson SBE 320 connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
Anderson Power Products's 2 pole connector is available with a 320 amp rating, 150 Volts continuous AC or DC operation. The Anderson SBE 320 connector is ideal for many applications and wire sizes, 2/0 to 300 mcm (67.4 to 152.0 mm²). Mechanical keys ensure that Anderson SBE 320 connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.
SBE® 320 MULTIPOLE CONNECTOR (UP TO 320 AMPS) FEATURES
- Genderless Design
- Auxiliary Contacts Kits
- Optional Air Supply System
SBE® 320 MULTIPOLE CONNECTOR (UP TO 320 AMPS) BENEFITS
- Makes assembly quick and easy and reduces number of parts stocked
- Provides ability to incorporate a secondary circuit
- Supplies air to battery during charging
|
SBE® 320 MULTIPOLE CONNECTOR (UP TO 320 AMPS) SPECIFICATIONS
Current Rating (Amperes)*
Contact Barrel Wire Size (AWG)
Contact Barrel Wire Size (mm2)
Maximum Wire Insulation Diameter (inches)
Maximum Wire Insulation Diameter (mm)
Average Contact Resistance* (micro-ohms)
Dielectric Withstanding Voltage (AC/DC)
Operating Temperature (°C)**
Operating Temperature (°F)
Contact Retention Force (lbf)
Contact Retention Force (N)
Connection/Disconnect (lbf)
Connection/Disconnect (N)
a. No Load (Contact/Disconnect Cycles)
b. Under Load (Hot Plug 250 mating cycles @ 120V)
Flammability Rating of Housing Material
* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector
|
SBE® 320 MULTIPOLE CONNECTOR (UP TO 320 AMPS) MECHANICAL DRAWING
|
SBE® 320 MULTIPOLE CONNECTOR (UP TO 320 AMPS) TOOLING PDFS
|
