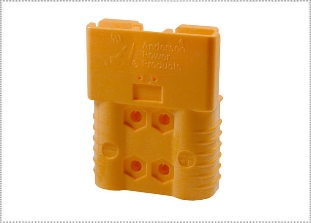

Anderson SBX 175 Multipole Connector (Up To 175 Amps)
SBX® 175 MULTIPOLE CONNECTOR
(UP TO 175 AMPS)
The innovative Anderson SBX 175 connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
Anderson Power Product's 2 pole connector is available with a 175 amp rating, 600 Volts continuous AC or DC operation. There are Anderson SBX 175 connectors for many applications and wire sizes, 1/0 or 35 mm. Mechanical keys ensure that Anderson SBX Multipole connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.
SBX® 175 MULTIPOLE CONNECTOR (UP TO 175 AMPS) FEATURES
- Mechanical Keyed Housings
- Auxiliary Contacts Kits
- Optional Mechanical Release
SBX® 175 MULTIPOLE CONNECTOR (UP TO 175 AMPS) BENEFITS
- Prevents accidental mating of components operating at different voltage levels
- Provides ability to incorporate a secondary sensor control circuit
- Aids mating and unmating for high cycle battery charging
|
SBX® 175 MULTIPOLE CONNECTOR (UP TO 175 AMPS) SPECIFICATIONS
Current Rating (Amperes)*
Contact Barrel Wire Size (AWG)
Contact Barrel Wire Size (mm2)
Maximum Wire Insulation Diameter (inches)
Maximum Wire Insulation Diameter (mm)
Average Contact Resistance* (micro-ohms)
Dielectric Withstanding Voltage (AC/DC)
Operating Temperature (°C)**
Operating Temperature (°F)
Contact Retention Force (lbf)
Contact Retention Force (N)
Connection/Disconnect (lbf)
Connection/Disconnect (N)
a. No Load (Mating Cycles)
b. Under Load (Hot Plug 250 mating cycles @ 120V)
Flammability Rating of Housing Material
* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector
|

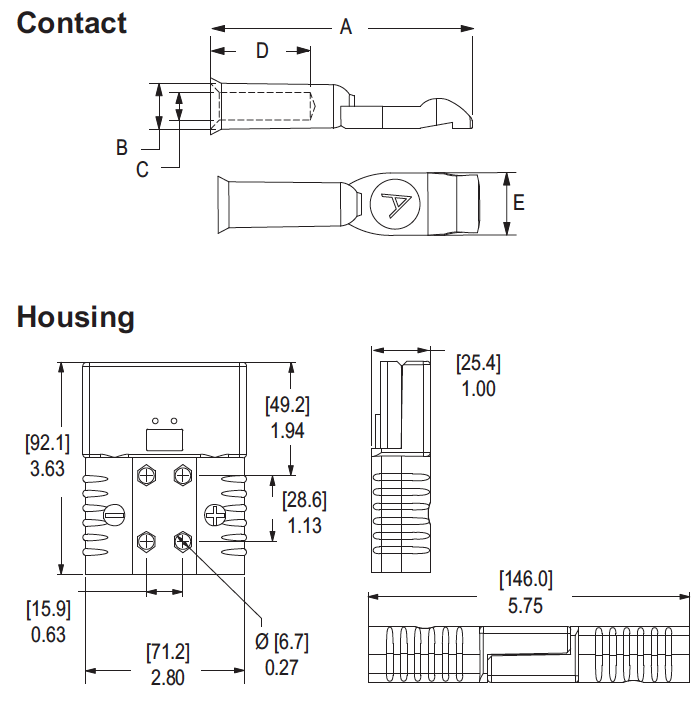

SBX® 175 MULTIPOLE CONNECTOR (UP TO 175 AMPS) MECHANICAL DRAWING
|
SBX® 175 MULTIPOLE CONNECTOR (UP TO 175 AMPS) TOOLING PDFS
|
