Anderson SBX® 350 Multipole Connector (Up To 350 Amps)
SBX® 350 MULTIPOLE CONNECTOR
(UP TO 350 AMPS)
The innovative Anderson SBX 350 connector provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
Anderson Power Product's 2 pole SBX 350 connector is available with a 350 amp rating, 600 Volts continuous AC or DC operation. There are Anderson SBX 350 connectors for many applications and wire sizes, 2/0 to 300 mcm (67.4 mcm to 152 mm). Mechanical keys ensure that the SBX 350 connector will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.
|
SBX® 350 MULTIPOLE CONNECTOR (UP TO 350 AMPS) FEATURES
- Mechanical keyed housings
- Single-piece housing and unitized construction
- Genderless design
SBX® 350 MULTIPOLE CONNECTOR (UP TO 350 AMPS) BENEFITS
- Prevents accidental mating of components operating at different voltage levels
- Provides industrial quality and durability
- Makes assembly quick and easy and reduces number of parts stocked
|
|
SBX® 350 MULTIPOLE CONNECTOR (UP TO 350 AMPS) SPECIFICATIONS
Current Rating (Amperes)* Contact Barrel Wire Size (AWG) Contact Barrel Wire Size (mm2) Maximum Wire Insulation Diameter (inches) Maximum Wire Insulation Diameter (mm) Average Contact Resistance* (micro-ohms) Insulation Withstanding Test Voltage (Volts AC/DC) Operating Temperature (°C)** Operating Temperature (°F)
Contact Retention Force (lbf) Contact Retention Force (N) Connection/Disconnect (lbf) Connection/Disconnect (N) a. No Load (Mating Cycles) b. Under Load (Hot Plug 250 mating cycles @ 120V)
Flammability Rating of Housing Material
* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector
|
|

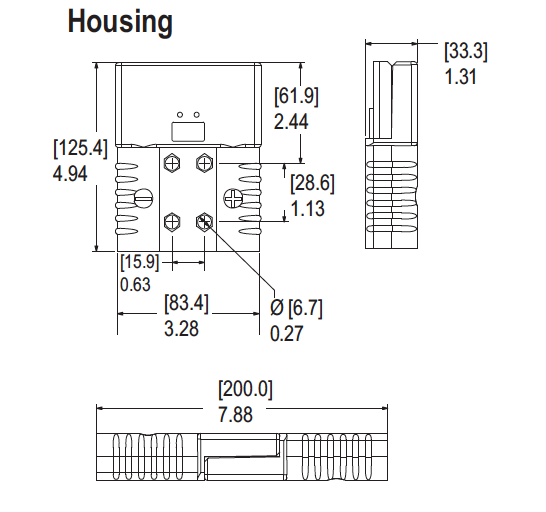

SBX® 350 MULTIPOLE CONNECTOR (UP TO 350 AMPS) MECHANICAL DRAWING
|
|
SBX® 350 MULTIPOLE CONNECTOR (UP TO 350 AMPS) TOOLING PDFS
|
