Anderson Power Products 4 Position Solar SPEC Pak^® Connectors (15 To 40 Amps)

4 POSITION SOLAR SPEC PAK^®
(15 TO 40 AMPS)

Anderson Power Products' Solar SPEC Pak^® Connector Series uses rugged and environmentally sealed (IP68) shells to protect industry leading APP^® Powerpole^® contacts and housing. Customer-configured Solar SPEC Pak^® are designed to meet the requirements of the photovoltaic industry to NEC 2008 requirements for 1,000 volt continuous capacity, first make/last break ground and a locking feature that require a tool to unlock. The adaptive SPEC Pak design lends itself towards use in other markets including wind power, fuel cells, mass transportation, off-road vehicles, agricultural equipment, oil and petro chemical exploration and more.

These SPEC Pak^® connectors feature touch safe, color-coded housings and are available in a broad selection of wire gauges.

FEATURES
SPECIFICATIONS
MECHANICAL
DRAWING
TOOLING
PDFS

4 POSITION SOLAR SPEC PAK^® (15 TO 40 AMPS) FEATURES

Environmentally sealed (IP68) rugged shells

40A per contact at 1000 volts

Compliant with regulatory and industrial standards

Locking latch compliant with NEC 2008

- 35°C drop test per UL 6703A

TC200 & HF10 cycling test per UL6703A

Power, signal & ground contacts available

Up to 4 power or 16 signal circuits

Touch safe connections on both sides

Other configurations available

4 POSITION SOLAR SPEC PAK^® (15 TO 40 AMPS) SPECIFICATIONS

Electrical

Voltage Rating (AC/DC)

1,000

UL Voltage Rating (AC/DC)

600

Dielectric Withstanding Voltage (AC)

3,000

Operating Temperature (°C)

-40° to 105° *

Operating Temperature (°F)

-40° to 221°

Mechanical

Shells Mating Cycles

1,500 Min.

Latch Mating Cycles

200 Min.

Connect / Disconnect (lbf)

12 Max.

Connect / Disconnect (N)

53 Max.

IP Rating

IP68

UL50 Sec 36 Sealing Requirement

Pass

Material

Shells (Plug / Receptacle)

PBT / PC

Latch

PPE / PS

Holder

Polycarbonate

* -40° to -120°C ( -40 to 248°F) can be achieved by using APP^® Chemical Resistant Powerpole^® housing. Contact us for more information.

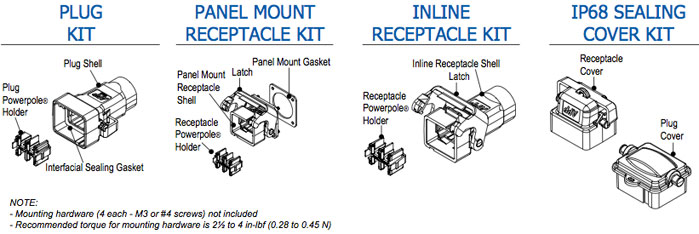

4 POSITION SOLAR SPEC PAK^® (15 TO 40 AMPS) MECHANICAL DRAWING

4 Position Solar SPEC Pak

4 POSITION SOLAR SPEC PAK^® (15 TO 40 AMPS) TOOLING PDFS

111038G2 PP30/45 & Aux. Contact Kit Insertion Tool

1309 Mechanical Crimp Tool Operating Procedure

Reeled Contacts Crimp Tooling

1309G8 Tool Kit Operating Procedure

1313G1 Hand Crimp Tool

TP0001 Pneumatic Crimp Tool
