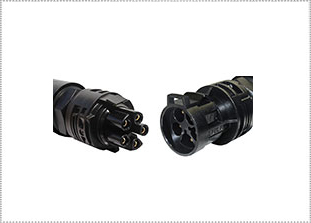

Anderson Power Products 5 Position Mini PL SPEC Pak® Connectors
ENVIRONMENTALLY SEALED CONNECTOR FOR HARSH INDUSTRIAL USE
The Anderson Power Products 5 Position Mini PL SPEC Pak® is an environmentally sealed IP68 connector delivering up to 23 amps at 600V. This series can handle wires from 24 to 12 AWG. The APP 5 Position Mini PL SPEC Pak is very rugged, offering a touch-safe, UV and flame-resistant shell to protect contacts from extreme conditions. This Mini PL SPEC Pak connector offers a manual release latch to prevent accidental un-mating, and uses PowerMod® gold-plated pin and socket contact technology. Typical Mini PL SPEC Pak applications include marine, lighting, transportation, industrial automation, solar power, wind power and ground support.
|
FEATURESANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® FEATURES
MATERIALS & FINISHESANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® MATERIALS & FINISHES
Shell PC
Latch PC
Flammability UL 94 V-0
Weatherability UL 764C / 12mm F1
Socket Body Copper Alloy, 200 μ inch Sn over Ni
Socket Contact Copper Alloy, 30 μ inch Au over Ni
Pin Copper Alloy, 30 μ inch Au over Ni
NOTE: Sn = Tin Ni = Nickel Au = Gold ELECTRICAL DATAANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® ELECTRICAL DATA
Current Rating (Amperes) UL 1977: 23
CSA (30°C Rise): 16 Voltage Rating UL 1977 (AC/DC): 600
Dielectric Withstanding (AC) 2200
Contact Resistance (Average) 3 Milliohms
 File No. E26226 CSA Certified File No. LR25154
MECHANICALANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® MECHANICAL
Environmental Seal IEC IP 68
UL 50E Wire Size 24 to 12 AWG
0.5 to 2.5 mm² Sealing Options Sealing Gland
Operating Temperature -20 to 105°C
-4 to 221°F Mating Cycles (no load) 500
Contact Retention Force 10 lbf
44 N Mating Force (nominal) 3.5 lb
16 N Touch Safe (UL 1977 Sec. 10.2) Pass
Latch Strength (nominal) 34 lb
155 N |
|
ANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® APPLICATIONS
|
|
STEP 1: SHELLANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® PART NUMBER EXAMPLE
1 2-1 2-2 3 S K 1 -021 M05 PS 01 -P56 SERIES COLOR SHELL STYLE SHELL SIZE INSERT WIRE PROTECTION HOUSING & CONTACTS ARRANGEMENT EXPLANATION STEP 1 - SELECT SHELL 1 = Male, Receptacle (Pins) STEP 2-1 - SELECT SEALING GLAND 00 = No Wire Protection STEP 2-2 - SELECT SEALING GLAND 00 = No Wire Protection STEP 3 - SELECT CONTACT P56 = 20 - 24 AWG Pin STEP 1: SELECT SHELL
SPEC Pak® Shell KitsMinimum Quantity - 25 (sealing glands & contacts sold separately) Description Part Numbers Male, Receptacle Shell SK1-021M05 Female, Plug SK6-021M05 Female, Jam Nut SK7-021M05 Female, Cover SK9F-021 Male, Cover SK9M-021
STEP 2: SEALING GLANDSTEP 2: SELECT SEALING GLAND
FAQ
Q: Do I need a sealing gland?
A: For IP68 rating, sealing glands are required with SK1-021M05 & SK6-021M05. A: For splash resistance in the unmated condition, use optional wire sealing grommets with SK7-021M05. (See Accessories) Q: How do I select the appropriate sealing gland? A: Identify the number of wires that will be used. Identify the outer diameter (OD) of those wire(s).  Material
Shell - PC
Sealing Grommet - EPDM
Flammability - UL94 V0
Color - Black
Torque Requirements
Hand tighten until snug, using a wrench tighten an additional 1/4 to 1/2 turn.
Wrench Size - 24
Operating Temperature
-20° to 105°C
-4° to 221°F
Bundled Cable Number of Wires Cable Range Wire Outer Diameter (OD) mm (in) Part Numbers Connector Kit Designation 1 14.0 to 15.5 (0.55 - 0.61) PS1T24-15X PS 01 1 11.0 to 14.0 (0.43 - 0.55) PS1T24-14X PS 02 1 6.5 to 11.0 (0.26 - 0.43) PS1T24-11X PS 03 1 4.0 to 6.5 (0.16 - 0.26) PS1T24-7X PS 04 1 3.0 to 4.1 (0.12 - 0.16) PS1T24-4X PS 05 1 2.0 to 3.1 (0.08 - 0.12) PS1T24-3X PS 06 1 1.0 to 2.0 (0.04 - 0.08) PS1T24-2X PS 07 Discrete Wires Number of Wires Cable Range Part Numbers Connector Kit Designation 3 3.5 to 4.5 (0.14 - 0.18) PS3T24-5X PM 31 3 2.6 to 3.6 (0.10 - 0.14) PS3T24-4X PM 32 3 2.0 to 2.8 (0.08 - 0.11) PS3T24-3X PM 33 3 1.0 to 2.0 (0.04 - 0.08) PS3T24-2X PM 34 4 3.5 to 4.5 (0.14 - 0.18) PS4T24-5X PM 41 4 2.6 to 3.6 (0.10 - 0.14) PS4T24-4X PM 42 4 2.0 to 2.8 (0.08 - 0.11) PS4T24-3X PM 43 4 1.0 to 2.0 (0.04 - 0.08) PS4T24-2X PM 44 5 3.5 to 4.5 (0.14 - 0.18) PS5T24-5X PM 51 5 2.6 to 3.6 (0.10 - 0.14) PS5T24-4X PM 52 5 2.0 to 2.8 (0.08 - 0.11) PS5T24-3X PM 53 5 1.0 to 2.0 (0.04 - 0.08) PS5T24-2X PM 54 STEP 3: CONTACTSSTEP 3: SELECT CONTACTS
FAQ
Q: What should I consider when selecting the contacts?

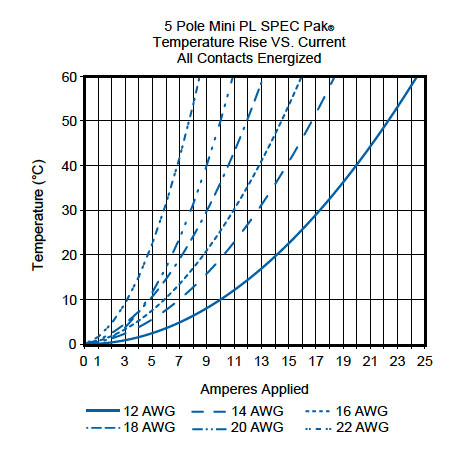

A: Determine the number of amps (continuous and peak). See temperature charts.
Q: What contacts are used in each shell?
A: Pins are used in SK1-021M05 (male receptacle).
Sockets are used in SK6-021M05 (female plug) & SK7-021M05 (female panel mount, jam nut)
Pin Contacts (PowerMod® Series) (For pre-mate and post-mate contacts for sequencing, contact us)
Standard Length 7.7 Type AWG mm² Part Numbers Part Numbers Connector Kit Designation Pin 24 to 20 0.25 to 0.50 PM16P2024S30 PM16P2024S30-50 P56 Pin 20 to 16 0.50 to 1.30 PM16P1620S30 PM16P1620S30-50 P55 Pin 16 to 14 1.30 to 2.10 PM16P1416S30 PM16P1416S30-50 P54 Pin 12 2.5 PM16P12S30 PM16P12S30-50 P57 Pneumatic Tool Hand Tool Tool Die Locator Insertion Tool Extraction Tool PM1000G1 TM0001 N/A TL0001 PM1002G1 PM1003G1 Socket Contacts (PowerMod® Series)
Type AWG mm² Part Numbers Part Numbers Connector Kit Designation Socket 24 to 20 0.25 to 0.50 PM16P2024S32 PM16P2024S32-50 S56 Socket 20 to 16 0.50 to 1.30 PM16P1620S32 PM16P1620S32-50 S55 Socket 16 to 14 1.30 to 2.10 PM16P1416S32 PM16P1416S32-50 S54 Socket 12 2.5 PM16P12S32 PM16P12S32-50 S57 Pneumatic Tool Hand Tool Tool Die Locator Insertion Tool Extraction Tool PM1000G1 TM0001 N/A TL0002 PM1002G1 PM1003G1 NOTE: APP tooling is required for UL & CSA compliance. Use of unapproved tools will void the connectors warranty. |
ANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® CONTACTS & TOOLING Pin Contacts (PowerMod® Series) (For pre-mate and post-mate contacts for sequencing, contact us)
Standard Length 7.7 Type AWG mm² Part Numbers Part Numbers Connector Kit Designation Pin 24 to 20 0.25 to 0.50 PM16P2024S30 PM16P2024S30-50 P56 Pin 20 to 16 0.50 to 1.30 PM16P1620S30 PM16P1620S30-50 P55 Pin 16 to 14 1.30 to 2.10 PM16P1416S30 PM16P1416S30-50 P54 Pin 12 2.5 PM16P12S30 PM16P12S30-50 P57 Pneumatic Tool Hand Tool Tool Die Locator Insertion Tool Extraction Tool PM1000G1 TM0001 N/A TL0001 PM1002G1 PM1003G1 Socket Contacts (PowerMod® Series)
Type AWG mm² Part Numbers Part Numbers Connector Kit Designation Socket 24 to 20 0.25 to 0.50 PM16P2024S32 PM16P2024S32-50 S56 Socket 20 to 16 0.50 to 1.30 PM16P1620S32 PM16P1620S32-50 S55 Socket 16 to 14 1.30 to 2.10 PM16P1416S32 PM16P1416S32-50 S54 Socket 12 2.5 PM16P12S32 PM16P12S32-50 S57 Pneumatic Tool Hand Tool Tool Die Locator Insertion Tool Extraction Tool PM1000G1 TM0001 N/A TL0002 PM1002G1 PM1003G1 NOTE: APP tooling is required for UL & CSA compliance. Use of unapproved tools will void the connectors warranty. |
|
ANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® DIMENSIONS Male Receptacle Female Plug Female Panel Mount SK1-021M05 & SK6-021M05 (mated) Male Cover Female Cover SK1-021M05 & SK7-021M05 (mated) |
|
ANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® ACCESSORIES Wire Seal Accessories for use with SK7-021M05 Description Part Numbers Part Numbers Wire Seal Retainer 2-8775P1 - Grommet, wire range 1.2 - 1.9mm (0.047" - 0.075") OD, Orange 114916P1 114916P1-50 Grommet, wire range 1.9 - 2.4mm (0.075" - 0.090") OD, Yellow 114916P2 114916P2-50 Grommet, wire range 2.5 - 3.2mm (0.100" - 0.130") OD, Tan 114916P3 114916P3-50 Sealing Plug, White 114916P1 114916P4-50 Covers Description Part Numbers Female Cover SK9F-021 Male Cover SK9M-021 |
ANDERSON POWER PRODUCTS 5 POSITION MINI PL SPEC PAK® VIDEO
|
