Anderson Power Products Mid Power SPEC Pak® Connectors
HIGHLY CONFIGURABLE, RUGGED AND ENVIRONMENTALLY SEALED (IP68)
Like the other connectors in the SPEC Pak® family, the Mid Power SPEC Pak is rugged and environmentally sealed (IP68). The Mid Power SPEC Pak leverages APP’s core Powerpole® flat wiping contact along with pin and socket technology, and has power handling capabilities up to 80 amps at 600 volts, AC or DC, with signal, making them suitable for 3 phase AC power distribution, motor, controller or Industrial equipment applications.
The environmentally sealed (IP68) shells are made from PC/PBT blended materials and also have a weatherability rating of F1, and flame resistance rating of V-0 allowing for operating temperatures of -40 to 105°C (-40 to 221°F). The wire to wire, and wire to panel configurations feature a metal latch to prevent accidental un-mating. This highly configurable Mid Power SPEC Pak accepts up to 4 Powerpole housings, available in a wide array of colors providing color coding options for ease of assembly.
The Mid Power SPEC Pak is highly configurable providing users with a multitude of flexible design solutions in a single interconnect.
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® FEATURES
- 1 - Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
- 2 - Auxiliary Contacts for Signal and/or Sequencing
(up to 8)
- 3 - Power Contacts
(up to 4)
- 4 - Sealing Gland to Ensure (IP68) Environmental Seal
- 5 - Color Coded Powerpole® Housings to Match Wire Colors
- 6 - Stainless Steel Latches to Prevent Accidental Unmating
- 7 - IP68 Panel Mount Receptacle Gasket
- 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® MATERIALS & FINISHES
SPEC Pak® Shells Used With
Powerpole® Power Contacts & Housings Auxiliary Contacts(1)
(PowerMod® Series)
Copper Alloy
Gold over Nickel
NOTES:
(1) - Integral Signal holders that holds up to 8 pins and 8 sockets
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® ELECTRICAL DATA
SPEC Pak® Shells Used With
Powerpole® Power Contacts & Housings Auxiliary Contacts (1)
(PowerMod® Series)

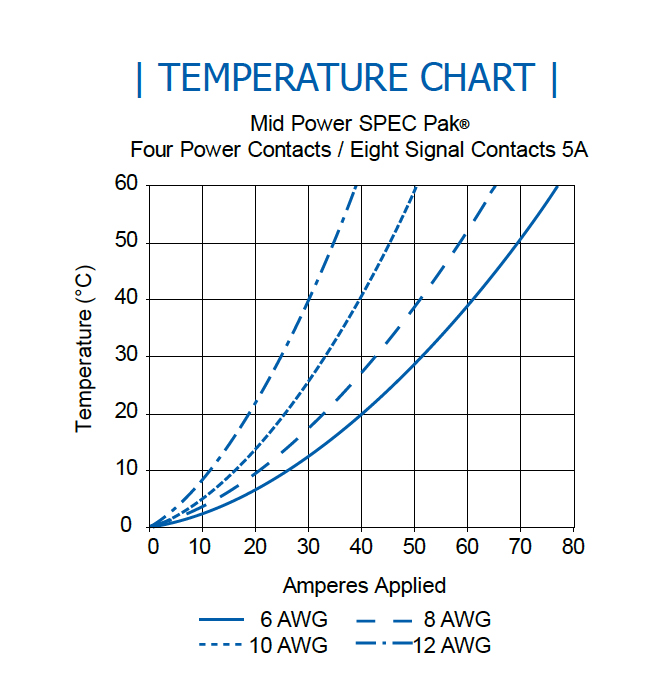

Current Rating (Amperes)
UL 1977
CSA (30° C Rise) Voltage Rating
UL 1977 (AC/DC) Dielectric Withstanding (AC) Contact Resistance Milliohms (average) Hot Plug Amp Rating (UL 1977)
NOTES:
(1) - Integral Signal holders that holds up to 8 pins and 8 sockets
(2) - Based on 6 AWG
(3) - Based on 6 AWG 1-1/4" distance between probes
(4) - Based on 20 AWG
(5) - Hot Plug testing completed using individual Powerpole ® housings and contacts, not installed in SPEC Pak ® shells.
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® MECHANICAL
SPEC Pak® Shells Used With
Powerpole® Power Contacts & Housings Auxiliary Contacts(1)
(PowerMod® Series)
Environmental Seal
IP Rating
Submersion (UL 50E) 12 to 6 AWG
3.3 to 13.3 mm² 24 to 12 AWG
0.50 to 2.5 mm² -40° to 105 °C
-40 °F to 221 °F -20° to 105 °C
-4° to 221 °F -40° to 105 °C
-40° to 221 °F Mating Cycles (no load)
Silver Plated Contacts
Gold Plated Contacts Panel Break Off (EIA 394-97)
NOTES:
(1) - Integral Signal holders that holds up to 8 pins and 8 sockets
|
|
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® APPLICATIONS
- Marine
- Wind Power
- Lighting
- Transportation
- Pumps
- Ground Support
- Machine Tool
- Industrial Automation
- Motor
- Solar Power
- Harsh Environments
|
|
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® PART NUMBER EXAMPLE
WIRE PROTECTION -
CABLE GLAND
STEP 1 - SELECT SHELL
Mates With
SK1-076C04
Inline Receptacle Kit
SK2-076C04
Panel Mount Receptacle
Mounting Hardware is not included.
Suggest 4 each M4 or #8 screws.
Recommended Torque 7-10 in-lbs.
STEP 2 - SELECT WIRE PROTECTION - CABLE GLAND
0000 = None
For Plug and In-line Receptacles Only (SK6 & SK1)
PS01
PM21
PM22
PM23
PM31
PM32
PM33
PM41
PM42
PM43
Single Hole with Cable OD Sealing Range 0.79" - 0.85" (18.0 - 24.0mm)
2 Holes with Cable OD Sealing Range 0.15" - 0.20" (3.8 - 5.0mm)
2 Holes with Cable OD Sealing Range 0.24" - 0.28" (6.0 - 7.2mm)
2 Holes with Cable OD Sealing Range 0.28" - 0.35" (7.0 - 9.0mm)
3 Holes with Cable OD Sealing Range 0.15" - 0.20" (3.8 - 5.0mm)
3 Holes with Cable OD Sealing Range 0.24" - 0.28" (6.0 - 7.2mm)
3 Holes with Cable OD Sealing Range 0.28" - 0.35" (7.0 - 9.0mm)
4 Holes with Cable OD Sealing Range 0.15" - 0.20" (3.8 - 5.0mm)
4 Holes with Cable OD Sealing Range 0.24" - 0.28" (6.0 - 7.2mm)
4 Holes with Cable OD Sealing Range 0.28" - 0.35" (7.0 - 9.0mm)
Torque Requirements
Hand Tighten. Using a 44mm wrench or strap wrench, tighten an additional 3/4 - 1 turn.
STEP 3 - SELECT HOUSING ARRANGEMENT
Select housing arrangement colors appropriate for
your AC or DC application.
Configured with up to 4 PP75 Contacts - Up to 80 Amps
A - AC Single Phase
B - AC 3 Phase, 3 Wire
C - DC 2 Circuit, 4 Wire
Z - All Black
Contact us for custom configuration.
STEP 4 - SELECT CONTACTS
70 = 1307 Contact Included for 6AWG (13.3mm2).
72 = 5953 Contact Included for 10/12 AWG (3.3 to 5.3mm2).
Select power and/or auxiliary contacts appropriate for your wire size (AWG or mm2).
Auxiliary contacts are purchased seperately. See Contacts and Tooling for part numbers for all contact types.
STEP 5 - CUSTOM CALLOUTS
Contact us for custom configuration.
|
|
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® CONTACTS & TOOLING - POWER CONTACTS
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® AUXILIARY CONTACTS
Pin Contact - Standard Length
24 to 20
20 to 18
16 to 14
12
0.50 to 0.75
0.75 to 1.00
1.00 to 1.50
2.5
PM16P2024S30-50
PM16P1620S30-50
PM16P1416S30-50
PM16P12S30-50
Pin Contact - Pre-Mate (FMLB)
24 to 20
20 to 18
16 to 14
12
0.50 to 0.75
0.75 to 1.00
1.00 to 1.50
2.5
PM16P2024A30-50
PM16P1620A30-50
PM16P1416A30-50
PM16P12A30-50
Pin Contact - Post-Mate (LMFB)
24 to 20
20 to 18
16 to 14
12
0.50 to 0.75
0.75 to 1.00
1.00 to 1.50
2.5
PM16P2024C30-50
PM16P1620C30-50
PM16P1416C30-50
PM16P12C30-50
Socket Contact
24 to 20
20 to 18
16 to 14
12
0.50 to 0.75
0.75 to 1.00
1.00 to 1.50
2.5
PM16S2024S32-50
PM16S1620S32-50
PM16S1416S32-50
PM16S12S32-50
|
|
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® ACCESSORIES - DUSTCAPS
Dustcap for Plug
SK9P - 076
Dustcaps for Receptacle
SK9 - 076
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® ACCESSORIES - HARDWARE
Panel Mount Receptacle Gasket
115129P1
Powerpole holder Retaining Screws M3.5 X 15mm
H1120P53
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® SPACER & KEYING ACCESSORY
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® ACCESSORIES - GROMMETS & GLANDS
Torque Requirements
Hand Tighten. Using a 44mm wrench or strap wrench, tighten an additional 3/4 - 1 turn.
ANDERSON POWER PRODUCTS MID POWER SPEC PAK® ACCESSORIES - SPARE HOUSINGS
|
