134G4

Anderson Power Products

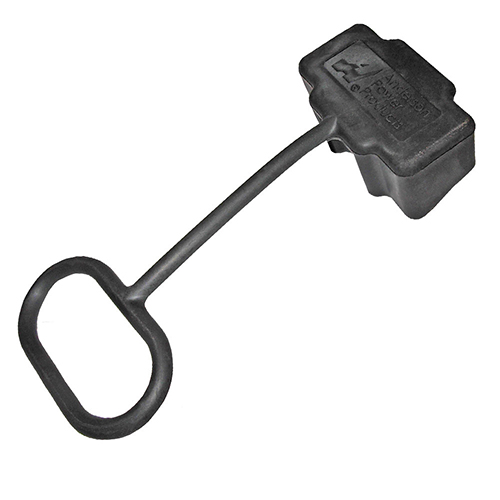

SB120 DUST COVER BLACK

SB® 50 MULTIPOLE CONNECTOR
(UP TO 120 AMPS)

The innovative Anderson Power Products™ SB® 50 connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.

Anderson Power Products™ 2 pole connector is available with a 50 amp rating, 600 Volts continuous AC or DC operation. There are Anderson Power Products™ SB® 50 connectors for many applications and wire sizes, #6 to #16 AWG (13.3 to 1.3 mm2). Mechanical keys ensure that these Anderson Power Products™ SB® 50 connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.

Anderson Power Products™ SB® Connector Features:

  • Low resistance silver or tin plated copper contacts - allows UL rated currents up to 120 amps
  • UL rated for hot plugging up to 50 amps - Great for battery or other applications where the ability to interrupt circuits is required
  • Chemical resistant housings available
  • Wire, PCB, and busbar contacts - allows one connection system to meet multiple needs

Learn more about how these Anderson SB® 50 multipole connectors are supporting the growing demand of robotics-focused operations by checking out our blog post called: "PEI-Genesis: Supporting Next Generation Engineers".

** Actual product appearance may vary **

Price Information

Available Qty: 281
Quote Qty:

More arriving soon, press QUOTE for more details.

Price available by Quote only
PRODUCT INFORMATION
Sealing:Unsealed
Connector Type:Accessory
Connector Style:Sealing Accessory
Shell Color:Black
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): 0.03968
Weight (g): 18.00000
