45101RC12-10S50

Amphenol Socapex - 26482 Connector

451 10C 10#20 SKT RECP

ROBUST INDUSTRIAL MIL-DTL-26482 CONNECTORS

Amphenol PT/451 cylindrical connectors are designed for industrial environments, such as transportation, measurement, machine tooling, industrial avionics, military, and instrumentation. This robust connector line is similar to MIL-DTL-26482 series I and provides high-density contact arrangements in a smaller circular shell.

PT/451 series cylindrical connectors offer quick-disconnect bayonet coupling for rapid mating and unmating; is fluid, shock and vibration-resistant; has a wide operating temperature range, and is available in several mounting styles and shell sizes.

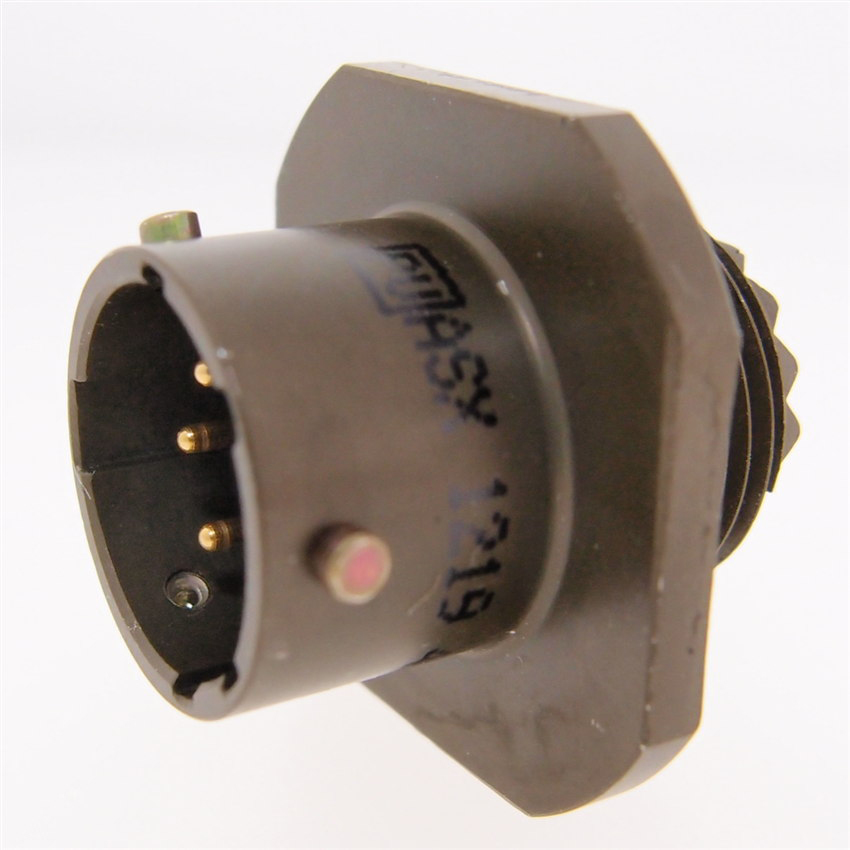

** Actual product appearance may vary **

Available Qty: 74

Order Qty:

CAN SHIP:in 4 days

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.

Quantity		Price
1 - 9	$51.94	$	51.94
10 - 24	$45.01	$	45.01
25 - 49	$39.72	$	39.72
50 - 74	$35.54	$	35.54
75+

Specs
Layout
Tools

PRODUCT INFORMATION

Specification:	BNAE NF. L54125
Sealing:	IP67
Shielding:	Yes
Connector Type:	Circular
Connector Style:	Receptacle
Mounting Type:	Cable
Contacts, # of:	10
Contact Style:	Socket
Termination Method:	Crimp
Crimp Wire Gauge:	24, 22, 20
Insert Arrangement:	12-10
Contact Size:	10#20
Contacts Supplied:	Yes
Contact Material:	Copper Alloy
Contact Plating:	50 microinches Gold Plate
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Cadmium
Shell Color:	Olive Drab
Insert Material:	Neoprene
Grommet & Seals Material:	Neoprene
Amperage Rating:	7.5A
Operating Voltage AC V RMS Max:	600
Operating Temperature °F (°C):	-67 to +257 (-55 to +125)
Contact Mating Life:	500
Operating Voltage DC:	850
Orientation:	Straight
Service Rating:	I
Endbell Type:	Cable Clamp
Export Class:	EAR / EAR99
RoHS:	No
Weight (lbs):	0.06478
Weight (g):	33.23505
