AHD10-9-1939P8R

Amphenol Sine

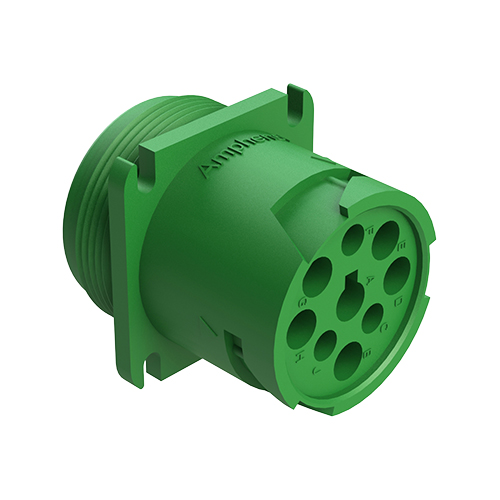

9 Position Receptacle with Reduced Rear Seal, Male Flange Receptacle, Green, Type II. Threaded Rear, J1939

COST-EFFECTIVE CONNECTOR SOLUTIONS

Amphenol Sine Systems' AHD Series™ connectors were developed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. Designed specifically as a cost-conscious, reliable alternative, intermateable to industry standard 6 and 9 pin connectors, the AHD Series™ is ideal for any situation where either controlled and/or uncontrolled environmental conditions exist.

AHD Series™ Connectors offer both a smooth, non-sealing option for controlled applications, as well as an environmentally sealed, IP67 rated (in mated condition) threaded option for more demanding applications.

  • 6 and 9 positions available
  • 6 Position: 10-14AWG, 25A, Size 12
  • 9 Position: 14-20AWG, 13A, Size 16
  • High-performance, cost-effective
  • Ideal for controlled/uncontrolled environmental conditions
  • Compatible with existing standard products industry-wide

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Sealing:IP67
Connector Type:Connector Circular
Connector Style:Receptacle - Threaded Rear
Contacts, # of:9
Contact Style:Socket
Contact Size:9#16
Contacts Supplied:No
Shell Material:Thermoplastic
Shell Color:Green
Grommet & Seals Material:Silicone Elastomer
Amperage Rating:13A
Operating Temperature °F (°C):-67 to +257 (-55 to +125)
Contact Mating Life:>100
Connector Series:A Series
Insulation Resistance:1000 Megohm @ 25 C
Series:AHD J1939
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
