AHDP02-18-14SN-BRA

Amphenol Sine

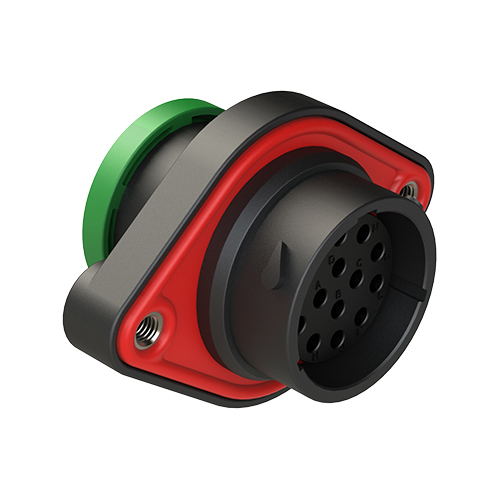

14 Position Panel Mount Receptacle, Socket, Shell Size 18, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter

COST-EFFECTIVE CONNECTOR SOLUTIONS

Amphenol Sine Systems' AHD Series™ connectors were developed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. Designed specifically as a cost-conscious, reliable alternative, intermateable to industry standard 6 and 9 pin connectors, the AHD Series™ is ideal for any situation where either controlled and/or uncontrolled environmental conditions exist.

AHD Series™ Connectors offer both a smooth, non-sealing option for controlled applications, as well as an environmentally sealed, IP67 rated (in mated condition) threaded option for more demanding applications.

  • 6 and 9 positions available
  • 6 Position: 10-14AWG, 25A, Size 12
  • 9 Position: 14-20AWG, 13A, Size 16
  • High-performance, cost-effective
  • Ideal for controlled/uncontrolled environmental conditions
  • Compatible with existing standard products industry-wide

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Sealing:IP68 / IP69K
Connector Type:Connector Circular
Connector Style:Receptacle
Mounting Type:Panel Mount
Contacts, # of:14
Contact Style:Socket
Contact Size:14#16
Contacts Supplied:No
Shell Material:Thermoplastic
Shell Color:Black
Grommet & Seals Material:Silicone Rubber
Amperage Rating:13A
Operating Temperature °F (°C):-67 to +257 (-55 to +125)
Contact Mating Life:>100
Connector Series:A Series
Insulation Resistance:1000 Megohm min @ 25 C
Series:DuraMate AHDP, PanelMate
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
