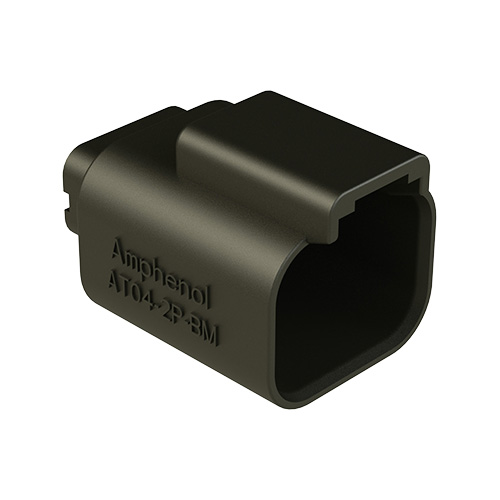

AT04-2P-BM02

Amphenol Sine

2 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Gold Plated Contacts Included, Potting, Black

Amphenol Sine Systems’ BoardLock™ Family is offered as flanged or flangeless, 180° straight or 90° right angle pin-oriented, wire-to-board versatility. With the proven reliability of the A Series™ environmentally-sealed thermoplastic connection system and a maximum current rating up to 100A, the design is compact and durable, low-profile and lightweight, making it ideal for power or data signal applications. All BoardLock™ product lines accept A Series™ components and are compatible with other industry standard mating connectors.

Applications include Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments, Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments.

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Sealing:IP67
Connector Type:Connector Rectangular
Connector Style:Receptacle - Board Mount PCB
Contacts, # of:2
Contact Style:Socket
Contact Size:2#16
Contacts Supplied:Yes
Contact Material:Copper Alloy
Shell Material:Thermoplastic
Shell Plating:Gold
Shell Color:Black
Amperage Rating:13A
Operating Temperature °F (°C):-67 to +257 (-55 to +125)
Contact Mating Life:>100
Connector Series:A Series
Insulation Resistance:1000 Megohm min @ 25 C
Series:AT, BoardLock
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
