AT62-203-04141-4

Amphenol Sine - Connector Contact

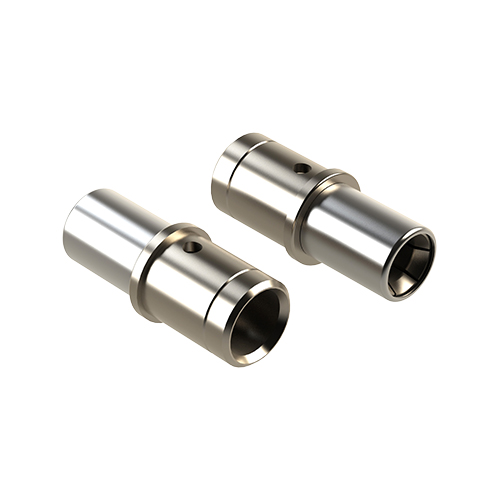

Socket Contact, Female, Machined Size 4, 4AWG, Nickel Plated

COST-EFFECTIVE CONNECTOR SOLUTIONS

Amphenol Sine Systems' AHD Series™ connectors were developed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. Designed specifically as a cost-conscious, reliable alternative, intermateable to industry standard 6 and 9 pin connectors, the AHD Series™ is ideal for any situation where either controlled and/or uncontrolled environmental conditions exist.

AHD Series™ Connectors offer both a smooth, non-sealing option for controlled applications, as well as an environmentally sealed, IP67 rated (in mated condition) threaded option for more demanding applications.

  • 6 and 9 positions available
  • 6 Position: 10-14AWG, 25A, Size 12
  • 9 Position: 14-20AWG, 13A, Size 16
  • High-performance, cost-effective
  • Ideal for controlled/uncontrolled environmental conditions
  • Compatible with existing standard products industry-wide

** Actual product appearance may vary **

Price Information

Available Qty: 1,948
Order Qty:
CAN SHIP:in 24 hrs

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.
QuantityPrice
1 - 9$9.46$9.46
10 - 24$9.12$9.12
25 - 49$8.53$8.53
50 - 99$8.00$8.00
100 - 1,948$7.54$7.54
1,949+
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:Unsealed
Connector Type:Contact
Connector Style:Machined
Contact Style:Socket
Contact Size:#4
Contacts Supplied:No
Contact Material:Copper Alloy
Shell Plating:Nickel
Amperage Rating:100A
Connector Series:A Series
Series:DuraMate AHDM, DuraMate AHDP, ATHD
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
