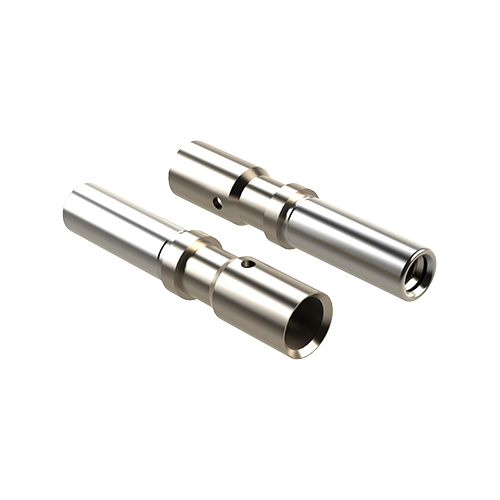

AT62-203-12141-10

Amphenol Sine - Connector Contact

Size 12 Socket Contact, 10-12AWG

COST-EFFECTIVE CONNECTOR SOLUTIONS

Amphenol Sine Systems' AHD Series™ connectors were developed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. Designed specifically as a cost-conscious, reliable alternative, intermateable to industry standard 6 and 9 pin connectors, the AHD Series™ is ideal for any situation where either controlled and/or uncontrolled environmental conditions exist.

AHD Series™ Connectors offer both a smooth, non-sealing option for controlled applications, as well as an environmentally sealed, IP67 rated (in mated condition) threaded option for more demanding applications.

  • 6 and 9 positions available
  • 6 Position: 10-14AWG, 25A, Size 12
  • 9 Position: 14-20AWG, 13A, Size 16
  • High-performance, cost-effective
  • Ideal for controlled/uncontrolled environmental conditions
  • Compatible with existing standard products industry-wide

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:Unsealed
Connector Type:Contact
Connector Style:Machined
Contact Style:Socket
Contact Size:#12
Contacts Supplied:No
Contact Material:Copper Alloy
Shell Plating:Nickel
Amperage Rating:25A
Connector Series:A Series
Series:ATP
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
