ATF13-08PA-BM01

Amphenol Sine

Board Mount Header, Right Angle, AT, 8 Pin, A-key, Snap Fit, Gold Plate

Amphenol Sine Systems’ BoardLock™ Family is offered as flanged or flangeless, 180° straight or 90° right angle pin-oriented, wire-to-board versatility. With the proven reliability of the A Series™ environmentally-sealed thermoplastic connection system and a maximum current rating up to 100A, the design is compact and durable, low-profile and lightweight, making it ideal for power or data signal applications. All BoardLock™ product lines accept A Series™ components and are compatible with other industry standard mating connectors.

Applications include Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments, Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments.

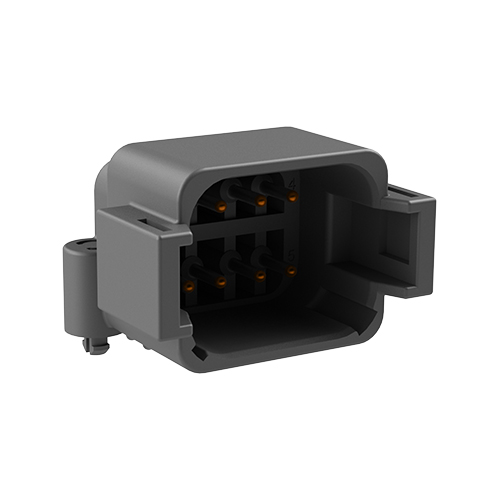

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:IP67
Connector Type:Connector Rectangular
Connector Style:Receptacle
Mounting Type:Board Mount
Contacts, # of:8
Contact Style:Socket
Contact Size:8#16
Contacts Supplied:Yes
Contact Material:Copper Alloy
Shell Material:Thermoplastic
Shell Plating:Gold
Shell Color:Grey
Amperage Rating:13A
Operating Temperature °F (°C):-67 to +257 (-55 to +125)
Contact Mating Life:100
Orientation:Right Angle
Connector Series:A Series
Insulation Resistance:1000 Megohm min @ 25 C
Series:AT, BoardLock
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
