ATM04-12PA-PM01

Amphenol Sine - Connector

12 Pin Panel Mount Receptacle, Male, Keyed A, Grey

COST-EFFECTIVE CONNECTOR SOLUTIONS

Amphenol Sine Systems' AHD Series™ connectors were developed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. Designed specifically as a cost-conscious, reliable alternative, intermateable to industry standard 6 and 9 pin connectors, the AHD Series™ is ideal for any situation where either controlled and/or uncontrolled environmental conditions exist.

AHD Series™ Connectors offer both a smooth, non-sealing option for controlled applications, as well as an environmentally sealed, IP67 rated (in mated condition) threaded option for more demanding applications.

  • 6 and 9 positions available
  • 6 Position: 10-14AWG, 25A, Size 12
  • 9 Position: 14-20AWG, 13A, Size 16
  • High-performance, cost-effective
  • Ideal for controlled/uncontrolled environmental conditions
  • Compatible with existing standard products industry-wide

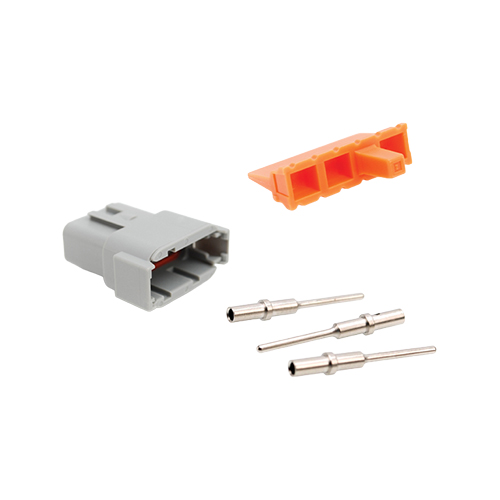

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:IP67
Connector Type:Connector Rectangular
Connector Style:Receptacle
Mounting Type:Panel Mount
Contacts, # of:12
Contact Style:Socket
Contact Size:12#20
Contacts Supplied:No
Contact Material:Copper Alloy
Contact Plating:Nickel
Shell Material:Thermoplastic
Shell Color:Grey, Orange
Grommet & Seals Material:Silicone Rubber
Amperage Rating:7.5A
Operating Temperature °F (°C):-67 to +257 (-55 to +125)
Contact Mating Life:>100
Insert Rotation/Keying:A
Connector Series:A Series
Insulation Resistance:1000 Megohm @ 25 C
Series:ATM, PanelMate
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
