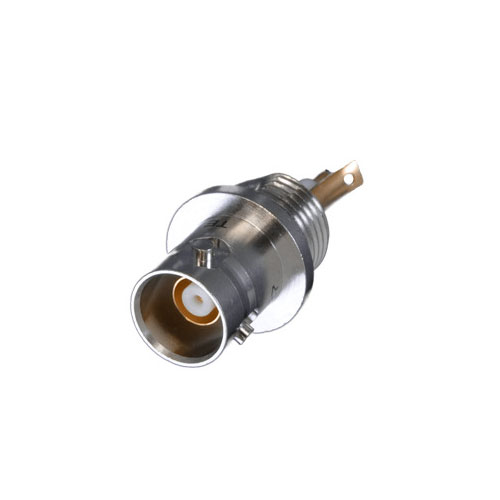

BJ77

Trompeter

The BJ77 is one of the most commonly used MIL-STD-1553B jacks. It is used on Bus Couplers, Bus Controllers, Remote Units and Bus Monitors. It has a 3 lug mechanical interface for connection to the extrnal cable.

** Actual product appearance may vary **

Price Information

Available Qty: 299
Order Qty:
CAN SHIP:in 24 hrs

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.
QuantityPrice
1 - 9$18.47$18.47
10 - 24$17.76$17.76
25 - 49$17.32$17.32
50 - 99$16.89$16.89
100 - 299$16.49$16.49
300+
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Specification:MIL-STD-1553B
Connector Type:RF Jack
Connector Style:Jack
Mounting Type:Bulkhead Mount
Termination Method:Solder
Contact Plating:Gold
Shell Material:Brass
Orientation:Straight
Impedance:Non-Constant
Max frequency (GHz):0.5
Insulated:No
Series:TRB
Export Class: EAR / EAR99
RoHS: No
Weight (lbs): Unknown
Weight (g): Unknown
