RT001619SNHEC03

Amphenol Sine

19 Position Square Flange Receptacle, Female, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing

MULTIWAY CIRCULAR CONNECTORS FOR INDUSTRIAL APPLICATIONS

'Amphenol Sine Systems’ ecomate® RM (Rugged Metal) Series of circular, metal connectors provide an IP67 rating (in mated condition) for industrial applications, all in a sealed connector system. With a circular bayonet coupling system and a maximum current rating of 45A/600V, the ecomate® RM (Rugged Metal) Series is perfect for Indoor/Outdoor applications in Factory Automation, Industrial, Heavy Equipment, Heavy Duty, Transportation, and Entertainment/Lighting markets. Design is based on MILDTL-26482 specifications. All ecomate® RM products are compatible with other industry standard mating connectors.

Also available in an ecomate® RM High Amperage option with up to 300A/630V featuring RADSOK® Contact Technology.

ecomate RM (Rugged Metal) Series

  • IP Rating: IP67 Rated (in mated condition)
  • IP Rating Specifications: "IP67 Rated (1M of Water for 30 Minutes, in mated condition)"
  • Size/Insert Arr: 8 Shell Sizes/28 Insert Arrangements
  • Unique Feature: Rugged Metal
  • Max Amp/Volt: Up to 45A/600V
  • Op Temp: -40°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: Body-Zinc Alloy; Coupling-Nickel Alum.
  • Contact Types: Machined, Stamped & Formed, PCB
  • Wire AWG Range: 30 - 8AWG (0.05 - 10.0 mm²)
  • Contact Termination: Crimp, Solder
  • Sealing Material: NBR/Silicone Rubber
  • Mating Cycles: >500
  • Shielding: EMI/RMI Available
  • Flammability Rating: UL94-VO
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: 5000 MΩ
  • Approvals: UL ECBT2 & UL ECBT8
  • RohS Compliant: Yes

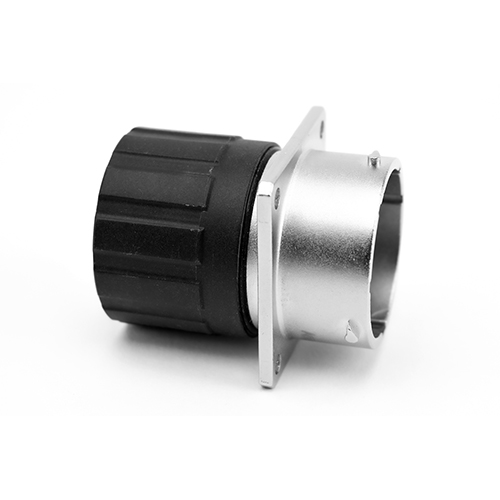

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Sealing:IP67 (in mated condition)
Connector Type:Circular
Connector Style:Connector
Mounting Type:Square Flange Mount
Contacts, # of:19
Contact Style:Socket
Crimp Wire Gauge:14-26 AWG
Contact Size:16
Contacts Supplied:No
Shell Material:Zinc Alloy, Nickel Plated
Amperage Rating:13A
Operating Temperature °F (°C):-40 to +221 (-40 to +105)
Contact Mating Life:500
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
