RT0W01210SNHEC03R

Amphenol Sine

Receptacle, Square Flange, 10 Position, Female, Shell Size 12, Silicone Seal, and End Cap with Reduced Diameter Individual Wire Sealing, Range 14-24 AWG

MULTIWAY CIRCULAR CONNECTORS FOR INDUSTRIAL APPLICATIONS

'Amphenol Sine Systems’ ecomate® RM (Rugged Metal) Series of circular, metal connectors provide an IP67 rating (in mated condition) for industrial applications, all in a sealed connector system. With a circular bayonet coupling system and a maximum current rating of 45A/600V, the ecomate® RM (Rugged Metal) Series is perfect for Indoor/Outdoor applications in Factory Automation, Industrial, Heavy Equipment, Heavy Duty, Transportation, and Entertainment/Lighting markets. Design is based on MILDTL-26482 specifications. All ecomate® RM products are compatible with other industry standard mating connectors.

Also available in an ecomate® RM High Amperage option with up to 300A/630V featuring RADSOK® Contact Technology.

ecomate RM (Rugged Metal) Series

  • IP Rating: IP67 Rated (in mated condition)
  • IP Rating Specifications: "IP67 Rated (1M of Water for 30 Minutes, in mated condition)"
  • Size/Insert Arr: 8 Shell Sizes/28 Insert Arrangements
  • Unique Feature: Rugged Metal
  • Max Amp/Volt: Up to 45A/600V
  • Op Temp: -40°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: Body-Zinc Alloy; Coupling-Nickel Alum.
  • Contact Types: Machined, Stamped & Formed, PCB
  • Wire AWG Range: 30 - 8AWG (0.05 - 10.0 mm²)
  • Contact Termination: Crimp, Solder
  • Sealing Material: NBR/Silicone Rubber
  • Mating Cycles: >500
  • Shielding: EMI/RMI Available
  • Flammability Rating: UL94-VO
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: 5000 MΩ
  • Approvals: UL ECBT2 & UL ECBT8
  • RohS Compliant: Yes

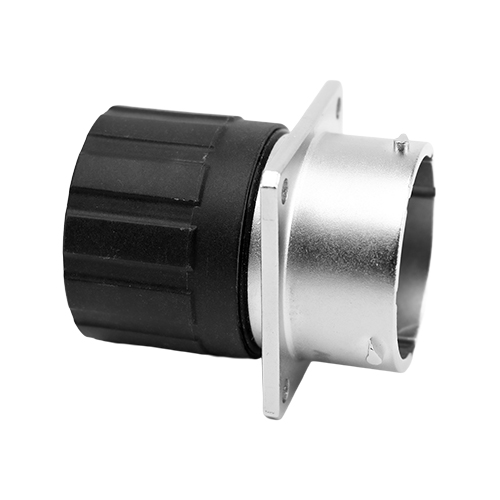

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:IP67
Connector Style:Square Flange Receptacle
Contacts, # of:7
Contact Style:Socket
Termination Method:Crimp
Crimp Wire Gauge:20-30
Contact Size:20
Shell Material:Zinc Alloy, Nickel Plated
Amperage Rating:5A (stamped) or 7.5A (machined)
Operating Temperature °F (°C):-40 to +257 (-40 to +125)
Cable Diameter-Outside:1.2mm-1.6mm
Connector Series:RM
Shell Size:12
Series:RM
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
