UTGX1JC1412P

Souriau

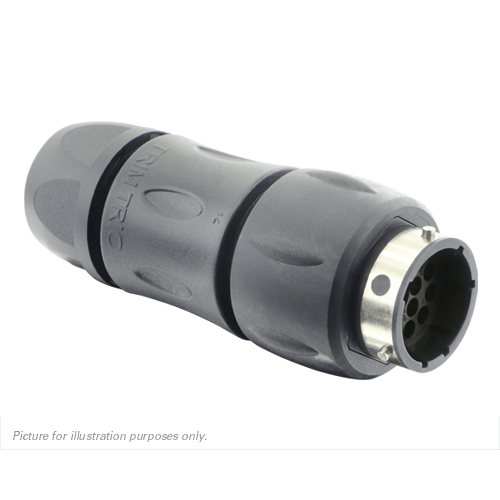

In line receptacle, with cable gland backshell, for 12 male contacts, IP68/69K

The UTGX series is built for indoor and outdoor industrial applications. With an IP68/69k rating, UTGX connectors are shock-proof, UV resistant, have a lifespan of up to 27 years in-application, and are highly configurable and lightweight. Built for quick and secure connections and disconnects, the new Souriau UTGX Series also uses Trim Trio® contacts, allowing for a cost-effective upgrade.

** Actual product appearance may vary **

Available Qty: 24

Order Qty:

CAN SHIP:in 24 hrs

Need more? Click Quote Button For Pricing & Delivery.

WEB PRICING ONLY

Questions? We can help.

Quantity		Price
1+	$9.613	$	9.61

Specs
Accessories
Mates

PRODUCT INFORMATION

Specification:	UL94 V0
Sealing:	IP68/69K
Connector Type:	Circular
Connector Style:	Receptacle
Mounting Type:	In-Line
Contacts, # of:	12
Contact Style:	Socket
Termination Method:	Crimp
Crimp Wire Gauge:	8 - 30 AWG
Contact Size:	8, 12, 16, 20
Contacts Supplied:	No
Shell Material:	Metal & Plastic
Amperage Rating:	Up to 44A
Operating Temperature °F (°C):	-40 to +212 (-40 to +105)
Contact Mating Life:	500
Insert Rotation/Keying:	N
Endbell Type:	Sealing Gland
Export Class:	EAR / EAR99
RoHS:	Yes
Weight (lbs):	Unknown
Weight (g):	Unknown
