UTGX6124S

Souriau

PLUG, NO BKSHELL

The UTGX series is built for indoor and outdoor industrial applications. With an IP68/69k rating, UTGX connectors are shock-proof, UV resistant, have a lifespan of up to 27 years in-application, and are highly configurable and lightweight. Built for quick and secure connections and disconnects, the new Souriau UTGX Series also uses Trim Trio® contacts, allowing for a cost-effective upgrade.

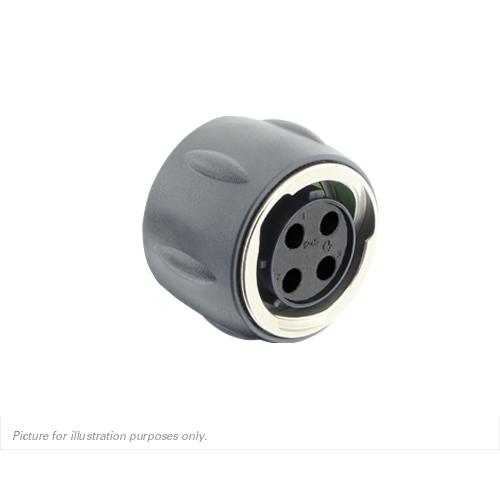

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Specification:UL94 V0
Sealing:IP68/69K
Connector Type:Circular
Connector Style:Plug
Contacts, # of:4
Contact Style:Socket
Termination Method:Crimp
Crimp Wire Gauge:8 - 30 AWG
Contact Size:8, 12, 16, 20
Contacts Supplied:No
Shell Material:Metal & Plastic
Amperage Rating:Up to 44A
Operating Temperature °F (°C):-40 to +212 (-40 to +105)
Contact Mating Life:500
Insert Rotation/Keying:N
Orientation:Straight
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
TECHNICAL DOCUMENTS

Dimensions
Souriau UTGX Series Catalog
Souriau UTGX Datasheet
Souriau UTGX Series Brochure
   + Read More
