UTGX7103P

Souriau

Jam nut receptacle, without backshell, for 3 male contacts, IP68/69K

The UTGX series is built for indoor and outdoor industrial applications. With an IP68/69k rating, UTGX connectors are shock-proof, UV resistant, have a lifespan of up to 27 years in-application, and are highly configurable and lightweight. Built for quick and secure connections and disconnects, the new Souriau UTGX Series also uses Trim Trio® contacts, allowing for a cost-effective upgrade.

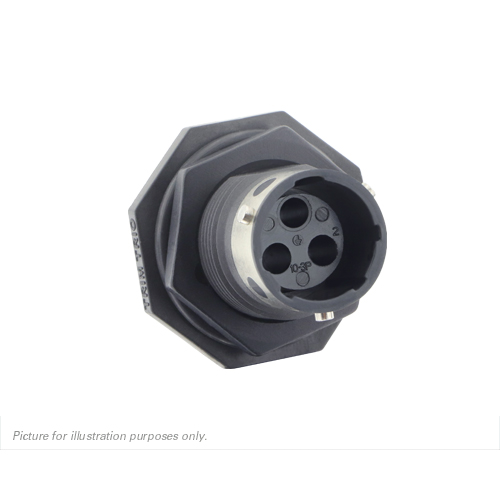

** Actual product appearance may vary **

Price Information

Available Qty: 25
Order Qty:
CAN SHIP:in 24 hrs

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.
QuantityPrice
1 - 9$10.96$10.96
10 - 24$9.50$9.50
25$8.38$8.38
26+
PRODUCT INFORMATION
Specification:UL94 V0
Sealing:IP68/69K
Connector Type:Circular
Connector Style:Receptacle
Mounting Type:Jam Nut
Contacts, # of:3
Contact Style:Pin
Termination Method:Crimp
Crimp Wire Gauge:8 - 30 AWG
Contact Size:8, 12, 16, 20
Contacts Supplied:No
Shell Material:Metal & Plastic
Amperage Rating:Up to 44A
Operating Temperature °F (°C):-40 to +212 (-40 to +105)
Contact Mating Life:500
Insert Rotation/Keying:N
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
TECHNICAL DOCUMENTS

Dimensions
Souriau UTGX Series Catalog
Souriau UTGX Datasheet
Souriau UTGX Series Brochure
   + Read More
