UTS6JC8E4P

Souriau

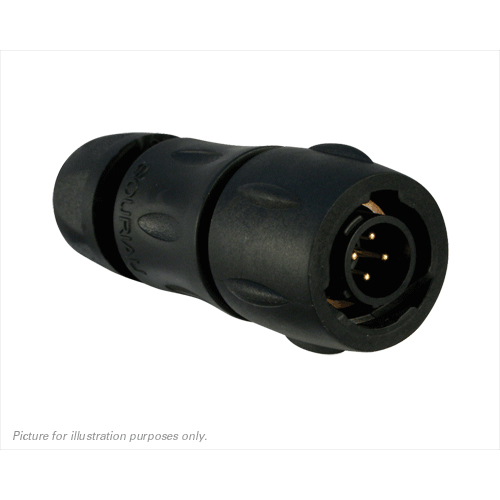

Plastic plug, with cable gland backshell, with 4 male solder contacts, IP68/69K in unmated conditions

WATERPROOF PLASTIC CONNECTOR SEALED IP68/69K
IN MATED AND UNMATED CONDITIONS

The industrial Souriau UTS series with bayonet coupling and extreme sealing performances is available in 5 shell sizes and 30 insert arrangements. A hi-seal Souriau UTS version is available offering extreme sealing performance in unmated and mated conditions and compatible with MIL-DTL-26482.

The SOURIAU UTS Series utilize a ⅓ twist bayonet coupling system, connectors are mated with an audible click and tactile feel to confirm proper mating and connection which eliminates uncertainty and reduces time and labor during installation. These connectors are ideal for power, mining, railway, automation, instrumentation, telecom and lighting applications.

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Specification:UL94 V0
Sealing:IP68/69K
Shielding:No
Connector Type:Circular
Connector Style:Plug
Contacts, # of:4
Contact Style:Pin
Termination Method:Solder Cup
Crimp Wire Gauge:8 - 30 AWG
Contact Size:8, 12, 16, 20
Contacts Supplied:Yes
Contact Plating:Gold
Shell Material:Plastic
Amperage Rating:Up to 44A
Operating Temperature °F (°C):-40 to +212 (-40 to +105)
Contact Mating Life:250
Insert Rotation/Keying:N
Orientation:Straight
Endbell Type:Sealing Gland
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): 0.03086
Weight (g): 14.00000
