Amphenol SJT Connectors MIL-DTL-38999 Type 1.5
MINIATURE CONNECTOR QUALIFIED TO JAN1003
Amphenol’s SJT series of miniature MIL-DTL-38999 Type 1.5 circular connectors offer high-density contact arrangements and combine unique design features of the scoop-proof LJT series within standard mounting dimensions of JT types. Amphenol SJT connectors are environmentally-sealed and have a wide operating temperature range.
These Amphenol SJT connectors meet the requirements of VG96912, are qualified to JAN1003 and are NATO-standard. Amphenol SJT connectors are commonly called MIL-DTL-38999 series 1.5. See our full list of specifications for Amphenol SJT connectors in the table below.
Get shopping! Part numbers begin JN and SJT.
- TECH
SPECS - APPLICATIONS
- CREATE PN
COMMERCIAL - CREATE PN
JN1003 - CONTACTS
& TOOLING - DIMENSIONS
- ACCESSORIES
- ASSEMBLY
|
FEATURESAMPHENOL SJT SERIES FEATURES
MATERIALS & FINISHESAMPHENOL SJT SERIES MATERIALS & FINISHES
Shell Aluminum alloy
Bayonet Pins Passivated stainless steel per QQ-S-763
Shell Plating (Default) - Clear chromate over cadmium over electroless nickel per QQ-P-416
014 - Olive drab chromate over cadmium over electroless nickel per QQ-P-416 023 - Electroless nickel per QQ-N-290 005 - Hard, anodic, non-conductive in accordance with MIL-A-862 W52 - Olive drab zinc cobalt Contacts Copper alloy
Contact Plating Gold-plated, 50 microinches per MIL-G-45204 type II, grade C, class I
Insulator Hard dielectric wafer which contains metal retention tines for high-reliability retention of crimp contacts
Grommet & Seals Silicone-based elastomer
Grounding Springs Beryllium copper
ELECTRICAL DATAAMPHENOL SJT SERIES ELECTRICAL DATA
Operating Voltage & Test Voltage (Unmated Condition)Service Rating Test Voltages N M I II Sea Level 1000 1300 1800 2300 100,000 Feet 200 200 200 200 Current Rating by Contact Size & Wire Accommodation (Test Amps) Wire Size 22D 22MQ 22Q 20 16 12 28 1.5 1.5 - - - - 26 2.0 2.0 2.0 - - - 24 3.0 3.0 3.0 3.0 - - 22 5.0 - 5.0 5.0 - - 20 - - - 7.5 7.5 - 18 - - - - 10.0 - 16 - - - - 13.0 - 14 - - - - - 17.0 12 - - - - - 23.0 Contact resistance of Mated Contacts End-to-End Contact Size Max. Millivolt Drop 22D 73 22M* 45 22* 73 20 55 16 49 12 42 * Inactive for new designs MECHANICALAMPHENOL SJT SERIES MECHANICAL
Operating Temperature (Default) Plating -65°C to 150°C (-85°F to 302°F)
014 Plating -65°C to 175°C (-85°F to 347°F) 023 Plating -65°C to 200°C (-85°F to 392°F) 005 Anodic (non-conductive) -65°C to 200°C (-85°F to 392°F) W52 Plating -65°C to 175°C (-85°F to 347°F) Sealing Against sand, dust per MIL-STD-202 & ice resistance
Wire Sealing Range Contact Size Min. Inches Max. Inches Min. MM Max. MM 22D 0.030 0.054 0.76 1.37 22M 0.030 0.050 0.76 1.27 22 0.034 0.060 0.86 1.52 20 0.040 0.083 1.02 2.11 16 0.065 0.109 1.65 2.77 12 0.097 0.142 2.46 3.61 10 0.135 0.162 3.42 4.12 8 (Co-ax) 0.135 0.155 3.43 3.94 8 (Twinax) 0.124 0.134 3.15 3.40 Insulation Strip Length Contact Size Strip Length 22*, 22D or 22M* .125 (3.18) 20 .188 (4.77) 16 .188 (4.77) 12 .188 (4.77) All dimensions in inches (millimeters in parentheses) Mating Life 500 cycles minimum
Salt Spray Finish (default): 48-hour per MIL-STD-1344A method 1001 condition B
Finish 014: 500-hour per MIL-STD-1344A method 1001 condition C Finish 023: 48-hour per MIL-STD-1344A method 1001 condition B Finish 005: 500-hour per MIL-STD-1344A method 1001 condition C Finish W52: 48-hour Heat Finish (default): 150°C (302°F)
Finish 014: 175°C (347°F) Finish 023: 200°C (392°F) Finish 005: 150°C (302°F) Finish W52: 175°C (347°F) Chemical Resistance Lubricating oils, hydraulic fluids, coolants, deicing fluids per MIL-STD-1344A Method 1016 condition A-1
Sine Vibration 30g at ambient temperature with simulated accessory load
Random Vibration 49.5 grms at ambient temperatures
Shock 300g ±15% half-sine wave magnitude for 3 ±1 milliseconds
EMI-Shielding Effectiveness 100 MHz to 10 GHz - minimum attenuation of 50dB
Contact Type Crimp, fibre optic, co-ax, twinax, or printed circuit
Number of Circuits 2 to 128
Contact Insertion Rear-insertion/rear-extraction with simple plastic or high-quality metal hand tools.
Contact Retention Per MIL-DTL-38999K tested to MIL-STD-1344A method 2007
Contact Axial Load Newtons ±10% Axial Load Pounds ±10% 22*, 22D, 22M* 44 10 20 67 15 16 111 25 12 111 25 Polarization Three-point bayonet coupling, five keyways with optional master keyway rotations, note insert and four fixed minor keyways.
Approvals In accordance with JAN1003 and VG96912
* Inactive for new designs |
|
AMPHENOL SJT SERIES APPLICATIONS
|
|
STEP 1: SHELLEXAMPLE
1 2 3 4 5 6 7 SJT07 RT 24-35 P N -014 -LC SHELL STYLE CLASS LAYOUT CONTACT POLARIZATION PLATING MODIFIER
Click here to download full pdf
STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
SJT00RT SJTP00RT SJT06RT
SJT02RE SJTP02RE
SJT07RT STEP 2: CLASSSTEP 2: SELECT CLASS
RE = No Rear Threads Contact Us For Details STEP 3: LAYOUTSTEP 3: SELECT LAYOUT
Contacts Layout Number Service Rating Total Contacts 22D 22M 22 20 16 12 12 10 8 8 8-6 M 6 6 8-35 M 6 6 8-44 M 4 4 8-98 I 3 3 10-1 M 1 1** 10-2 I 2 2 10-4 I 4 4 10-5 I 5 5 10-13 M 13 13 10-35 M 13 13 10-98 I 6 6 12-4 I 4 4 12-8 I 8 8 12-22 M 22 22 12-35 M 22 22 12-98 I 10 10 14-5 II 5 5 14-15 I 15 14 1 14-18 I 18 18 14-19 I 19 19 14-35 M 37 37 14-37 M 37 37 14-97 I 12 8 4 16-2 M 39 38 1** 16-6 I 6 6 16-8 II 8 8 16-13 I 13 13 16-26 I 26 26 16-35 M 55 55 16-42 M 42 42 16-55 M 55 55 16-99 I 23 21 2 18-11 II 11 11 18-17 M 17 10 1 4 2** 18-32 I 32 32 18-35 M 66 66 18-66 M 66 66 20-1 M 79 79 20-2 M 65 65 20-11 I 11 11 20-16 II 16 16 20-35 M 79 79 20-39 I 39 37 2 20-41 I 41 41 20-75 M 4 4* 20-79 II 19 17 2** 22-1 M 100 100 22-2 M 85 85 22-21 II 2 21 22-35 M 100 100 22-53 I 53 53 24-1 M 128 128 24-2 M 100 100 24-4 I 56 48 8 24-7 M 99 97 2** 24-11 N 11 2 9 2** 24-19 I 19 19 24-20 N 30 10 13 4♦ 3** 24-24 I 24 12 12 24-29 I 29 29 24-35 M 128 128 24-37 I 37 37 24-43 I 43 23 20 24-46 I 46 40 4 2** 24-61 I 61 61 Not tooled for RP or 02RE * Co-ax ** Twinax 20-24 is supplied with 2#12 co-ax and 2 #12 shielded contacts When Choosing Layout: First Number = Step 3A – Shell Size, Dash = Step 4 – Plating, Second Number = 3B – Layout Read Less LAYOUTS BY NUMBER OF CONTACTS
Drawing not to scale; mating face view of pin insert shown (socket view is opposite) Contacts 1 2 3 4
Layout 10-1 10-2 8-98 8-44 10-4 12-4 20-75 # of Contacts 1-#8** 2-#16 3-#20 4-#22 4-#20 4-#16 4-#8* Service Rating M I I M I I N* Contacts 5 6
Layout 10-5 14-5 8-6 8-35 10-98 16-6 # of Contacts 5-#20 5-#16 6-#22M 6-#22D 6-#20 6-#12 Service Rating I II M M I I Contacts 8 10 11
Layout 12-8 16-8 12-98 18-11 # of Contacts 8-#20 8-#16 10-#20 11-#16 Service Rating I II I II Contacts 11 12
Layout 20-11 24-11 14-97 18-12 # of Contacts 11-#12 2-#20, 9-#10 8-#20, 4-#16 6-#20, 4-#16, 2-#8** Service Rating I N I N Contacts 11 11 12
Layout 10-13 10-35 16-13 14-15 20-16 # of Contacts 13-#22M 13-#22D 13-#16 14-#20, 1-#16 16-#16 Service Rating M M I I II Contacts 17 18 19
Layout 18-17 14-18 14-19 20-79 24-19 # of Contacts 10-#22D, 1-#20, 4-#16, 2-#8** 18-#20 19-#20 17-#22D, 2-#8** 19-#12 Service Rating M I I II I Contacts 21 22 23
Layout 22-21 12-22 12-35 16-99 # of Contacts 21-#16 22-#22M 22-#22D 21-#20, 2-#16 Service Rating II M M I Contacts 24 26
Layout 24-24 16-26 # of Contacts 12-#16, 12-#12 26-#20 Service Rating I I Contacts 29 30 32
Layout 24-29 24-20 18-32 # of Contacts 29-#16 10-#20, 13-#16, 4#12♦, 3#8** 32-#20 Service Rating I I I Contacts 37
Layout 14-37 14-35 24-37 # of Contacts 37-#22M 37-#22D 37-#16 Service Rating M M I Contacts 39 41 42
Layout 16-2 20-39 20-41 16-42 # of Contacts 38-#22D, 1-#8** 37-#20, 2-#16 41-#20 42-#22 Service Rating M I I M Contacts 43 46 53
Layout 24-43 24-46 22-53 # of Contacts 23-#20, 20-#16 40-#20, 4-#16, 2-#8* 53-#20 Service Rating I I M Contacts 55 56 61
Layout 16-35 16-55 24-4 24-61 # of Contacts 55-#22D 55-#22M 48-#20, 8-#16 61-#20 Service Rating M M I I Contacts 65 66 79
Layout 20-2 18-35 18-66 20-1 # of Contacts 65-#22 66-#22D 66-#22M 79-#22M Service Rating M M M M Contacts 79 85 99 100
Layout 20-35 22-2 24-7 22-1 # of Contacts 79-#22D 85-#22 97-#22D, 2-#8* 100-#22M Service Rating M M M M Contacts 100 128
Layout 22-35 24-2 24-1 24-35 # of Contacts 100-#22D 100-#22 128-#22M 128-#22D Service Rating M M M M Read Less STEP 4: PLATINGSTEP 4: SELECT PLATING
Finish Suffix Data Suffix Data & Strain Relief Cadmium-plated nickel base - SR Olive drab cadmium- plated nickel base 014 386 Electroless nickel 023 424 Anodic coating (Alumilite) 005 300 - Olive drab zinc cobalt W52 W52-SR SR = Strain Relief STEP 5: CONTACTSTEP 5: SELECT CONTACT
P = Pin S = Socket Note: See Step 6 if you are not ordering contacts with part. STEP 6: POLARIZATIONSTEP 6: SELECT POLARIZATION
Shell Size N A B C D 9 95 77 - - 113 11 95 81 67 123 109 13 95 75 63 127 115 15 95 74 61 129 116 17 95 77 65 125 113 19 95 77 65 125 113 21 95 77 65 125 113 23 95 80 69 121 110 25 95 80 69 121 110 STEP 7: MODIFIERSTEP 7: SELECT MODIFIER
For other commercial modifications, i.e., less tools, with PC contact or with endbell, contact us.Omit for standard contacts LC = Less contacts, wire hole fillers and plastic insertion/extraction tool. (Purchase Order must state “Less Contacts”) Note: LC is not marked on part |
*
|
STEP 1: SHELLEXAMPLE
1 2 3 4 5 JN1003A 1608 P N 1 SHELL STYLE LAYOUT CONTACT POLARIZATION MODIFIER
Click here to download full pdf
STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
JN1003A JN1003B JN1003H JN1003FG STEP 2: LAYOUTSTEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Contacts 22D 22M 22 20 16 12 12 10 8 8 8-35 M 6 6 8-98 I 3 3 10-02 I 2 2 10-35 M 13 13 10-98 I 6 6 12-04 I 4 4 12-35 M 22 22 12-98 I 10 10 14-19 I 19 19 14-35 M 37 37 14-97 I 12 8 4 16-06 I 6 6 16-08 II 8 8 16-26 I 26 26 16-35 M 55 55 18-11 II 11 11 18-12 N 12 6 4 2** 18-17 M 17 10 1 4 2** 18-32 I 32 32 18-35 M 66 66 20-11 I 11 11 20-16 II 16 16 20-35 M 79 79 20-41 I 41 41 22-21 II 21 21 22-35 M 100 100 22-53 I 53 53 24-04 I 56 48 8 24-07 M 99 97 2** 24-19 I 19 19 24-20 N 30 10 13 4♦ 3** 24-35 M 128 128 24-37 I 37 37 24-41 41 23 20 24-61 I 61 61 16  Not tooled for RP or 02RE* Co-ax ** Twinax 20-24 is supplied with 2#12 co-ax and 2 #12 shielded contacts Read Less LAYOUTS BY NUMBER OF CONTACTS
Drawing not to scale; mating face view of pin insert shown (socket view is opposite) Contacts 1 2 3 4
Layout 10-1 10-2 8-98 8-44 10-4 12-4 20-75 # of Contacts 1-#8** 2-#16 3-#20 4-#22 4-#20 4-#16 4-#8* Service Rating M I I M I I N* Contacts 5 6
Layout 10-5 14-5 8-6 8-35 10-98 16-6 # of Contacts 5-#20 5-#16 6-#22M 6-#22D 6-#20 6-#12 Service Rating I II M M I I Contacts 8 10 11
Layout 12-8 16-8 12-98 18-11 # of Contacts 8-#20 8-#16 10-#20 11-#16 Service Rating I II I II Contacts 11 12
Layout 20-11 24-11 14-97 18-12 # of Contacts 11-#12 2-#20, 9-#10 8-#20, 4-#16 6-#20, 4-#16, 2-#8** Service Rating I N I N Contacts 11 11 12
Layout 10-13 10-35 16-13 14-15 20-16 # of Contacts 13-#22M 13-#22D 13-#16 14-#20, 1-#16 16-#16 Service Rating M M I I II Contacts 17 18 19
Layout 18-17 14-18 14-19 20-79 24-19 # of Contacts 10-#22D, 1-#20, 4-#16, 2-#8** 18-#20 19-#20 17-#22D, 2-#8** 19-#12 Service Rating M I I II I Contacts 21 22 23
Layout 22-21 12-22 12-35 16-99 # of Contacts 21-#16 22-#22M 22-#22D 21-#20, 2-#16 Service Rating II M M I Contacts 24 26
Layout 24-24 16-26 # of Contacts 12-#16, 12-#12 26-#20 Service Rating I I Contacts 29 30 32
Layout 24-29 24-20 18-32 # of Contacts 29-#16 10-#20, 13-#16, 4#12♦, 3#8** 32-#20 Service Rating I I I Contacts 37
Layout 14-37 14-35 24-37 # of Contacts 37-#22M 37-#22D 37-#16 Service Rating M M I Contacts 39 41 42
Layout 16-2 20-39 20-41 16-42 # of Contacts 38-#22D, 1-#8** 37-#20, 2-#16 41-#20 42-#22 Service Rating M I I M Contacts 43 46 53
Layout 24-43 24-46 22-53 # of Contacts 23-#20, 20-#16 40-#20, 4-#16, 2-#8* 53-#20 Service Rating I I M Contacts 55 56 61
Layout 16-35 16-55 24-4 24-61 # of Contacts 55-#22D 55-#22M 48-#20, 8-#16 61-#20 Service Rating M M I I Contacts 65 66 79
Layout 20-2 18-35 18-66 20-1 # of Contacts 65-#22 66-#22D 66-#22M 79-#22M Service Rating M M M M Contacts 79 85 99 100
Layout 20-35 22-2 24-7 22-1 # of Contacts 79-#22D 85-#22 97-#22D, 2-#8* 100-#22M Service Rating M M M M Contacts 100 128
Layout 22-35 24-2 24-1 24-35 # of Contacts 100-#22D 100-#22 128-#22M 128-#22D Service Rating M M M M Read Less STEP 4: ROTATIONSTEP 6: SELECT ROTATION
Shell Size N A B C D 9 95 77 - - 113 11 95 81 67 123 109 13 95 75 63 127 115 15 95 74 61 129 116 17 95 77 65 125 113 19 95 77 65 125 113 21 95 77 65 125 113 23 95 80 69 121 110 25 95 80 69 121 110 STEP 5: MODIFIERSTEP 5: SELECT MODIFIER
Leave blank for connector delivered without contacts 1 = Connector delivered with contacts |
|

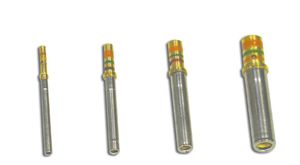

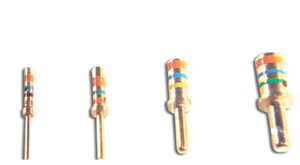

CONTACTSAMPHENOL SJT SERIES PINS
Color Bands Wire Range Contact Size Wire Size AWG Pin Contact 1 2 3 Wire Strip Lengths Min. Max. Wire Hole Filler Color 22D 28,26, M39029/58-360 Orange Blue Black .125 .030 .054 MS27488- 22-2 Black 22M* 28,26 & 24 M39029/58-361 Orange Blue Brown .125 .030 .050 MS27488- 22-2 Black 22* 26,24 & 22 M39029/58-362 Orange Blue Red .125 .034 .060 MS27488- 22-2 Black 20 20,22 & 24 M39029/58-363 Orange Blue Orange .188 .040 .083 MS27488- 20-2 Red 16 16,18 & 20 M39029/58-364 Orange Blue Yellow .188 .065 .109 MS27488- 16-2 Blue 12 12 & 14 M39029/58-365 Orange Blue Green .188 .097 .142 MS27488- 12-2 Yellow 8 Co-ax+ - - - - - .135 .155 MS27488- 8-3 - + For fibre optic contacts, please contact us. * Inactive for new design AMPHENOL SJT SERIES SOCKETS
Color Bands Wire Range Contact Size Wire Size AWG Socket Contact 1 2 3 Wire Strip Lengths Min. Max. Wire Hole Filler Color 22D 28,26, M39029/58-348 Orange Yellow Gray .125 .030 .054 MS27488- 22-2 Black 20 20,22 & 24 M39029/58-351 Orange Green Brown .188 .040 .083 MS27488- 20-2 Red 16 16,18 & 20 M39029/56-352 Orange Green Red .188 .065 .109 MS27488- 16-2 Blue 12 12 & 14 M39029/ Orange Green Orange .188 .097 .142 MS27488- 12-2 Yellow 8 Co-ax+ - - - - - .135 (3.42) .155 (3.94) MS27488- 8-3 - + For fibre optic contacts, please contact us. All dimensions in inches (millimeters in parenthesis) CONTACT TOOLSAMPHENOL SJT SERIES PINS

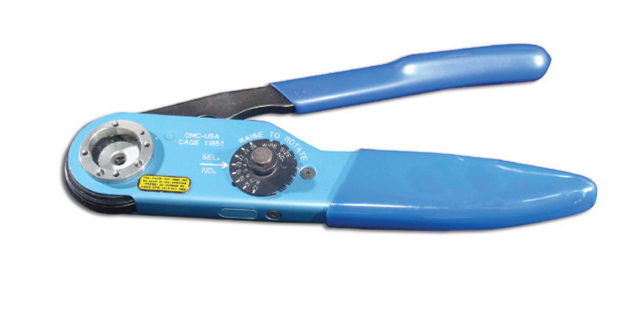

Contact Size Hand-Crimp Tool Power-Crimp Tool Turret Heads Use Locator Plastic Insertion/ Extraction Tool Insertion Tip Color Extraction Tip Color Metal Insertion Tool Color Band Metal Extraction Tool Color Band 1 Color Band 2 22D M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 22M M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 22 M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 20 M22520/ WA27ƗƗ M22520/ Red M81969/ Red Orange MS27495 Blue MS27495 Red White 16 M22520/ WA27ƗƗ
M22520/ Blue M81969/ Blue White MS27495 Blue MS27495 Blue White 12 M22520/ WA27ƗƗ M22520/ Yellow M81969/ Yellow White DAK95 - DRK95 - - 8 - - - - M81969/ - Red - - - - - AMPHENOL SJT SERIES SOCKETS
Contact Size Hand-Crimp Tool Power-Crimp Tool Turret Heads Use Locator Plastic Insertion/ Extraction Tool Insertion Tip Color Extraction Tip Color Metal Insertion Tool Color Band Metal Extraction Tool Color Band 1 Color Band 2 22D M22520/ WA22ƗƗ M22520/ - M81969/ Green White MS27495 Black MS27495 Black White 20 M22520/ WA27ƗƗ M22520/ Red M81969/ Red Orange MS27495 Red MS27495 Red White 16 M22520/ WA27ƗƗ M22520/ Blue M81969/ Blue White MS27495 Blue MS27495 Blue White 12 M22520/ WA27ƗƗ M22520/ Yellow M81969/ Yellow White DAK95 - DRK95 - - 8 - - - - M81969/ - Red - - - - - ƗƗ Contact us for more tool accessories. CO-AX CONTACTSAMPHENOL SJT SERIES CO-AX CONTACTS
Co-ax Pin Co-ax Socket Crimping Tools
Co-ax Contact Size Cable Type Contact Part Number Contact Part Number Crimping Tools Crimping Tools
RG-178B/U, RG-174A/U, 21-033122-564
21-033123-564
RG-174A/U, RG-180B/U,
21-033122-541
21-033123-541
M22520/5-01 w/ die set M22520/5-05 (A)or M22520/5-19 (B) or M22520/10-01 w/ die set M22520/10-07 (A) M22520/5-01 w/ die set M22520/5-05 (B) or M22520/5-41 (B) or M22520/10-01 w/ die set M22520/10-07 (B)
M22520/2-01 w/ Positioner M22520/2-10
M22520/5-01 w/ die set M22520/5-45 (A)
Insertion / Extraction Tools Wire Strip Length Wire Sealing Range Co-ax Contact Size Installation Tools Installation Wire Strip Lengths Wire Sealing Range Wire Sealing Range 16 M81969/8-07 or M81969/8-08 or Contact us for details .065 (1.65) .109 (2.77) 12 M81969/8-09 or M81969/8-10 or Contact us for details .097 (2.46) .142 (3.61) 8 Hand insertion M81969/14-12 or Contact us for details .135 (3.43) .155 (3.94) All dimensions in inches (millimeters in parentheses) PCB CONTACTSAMPHENOL SJT SERIES PRINTED CIRCUIT BOARD CONTACTS - PIN
Contact Stickout Max. / Min. PCB Pin Contacts Size Tail Diameter +/- .001 SJT00RT SJTP00RT SJT02RE SJTP02RE SJT06RE SJT07RE (9-17) SJT07RE (19-25) 10-407552-015 22M 0.019 .372 / .317 .357 / .302 .576 / .521 .576 / .520 .372 / .317 .351 / .296 .329 / .279 10-407552-055 22M 0.019 .261 / .206 .246 / .191 .465 / .410 .465 / .409 .261 / .206 .240 / .185 .218 / .168 10-407552-085 22M 0.019 .097 / .047 .082 / .032 .301 / .251 .301 / .250 .097 / .047 .076 / .026 .054 / .009 10-407552-115 22M 0.019 .035 / NS .020 / NS .239 / .189 .239 / .188 .035 / NS .014 / NS NS 10-497640-015 20 0.019 .385 / .335 .370 / .320 .589 / .539 .589 / .538 .385 / .335 .364 / .314 .342 / .297 10-497640-025 20 0.019 .250 / .200 .235 / .185 .454 / .404 .454 / .403 .250 / .200 .229 / .179 .207 / .162 10-497640-045 20 0.019 NS NS .191 / .141 .191 / .141 NS NS NS 10-497596-015 20 0.025 .095 / .049 .080 / .034 .299 / .253 .299 / .252 .095 / .049 .074 / .028 .052 / .011 10-497596-025 20 0.025 .185 / .139 .170 / .124 .389 / .343 .389 / .342 .185 / .139 .164 / .118 .142 / .101 10-497596-035 20 0.025 .266 / .220 .251 / .205 .470 / .424 .470 / .423 .266 / .220 .245 / .119 .223 /.182 10-497596-055 20 0.025 .383 / .337 .368 / .322 .587 / .541 .587 / .540 .383 / .337 .362 / .316 .340 / .299 10-497695-015 16 0.040 .292 / .242 .277 / .227 .496 / .446 .496 / .445 .292 / .242 .271 / .221 .249 / .204 10-497630-035 16 0.062 .097 / .047 .082 / .032 .301 / .251 .301 / .250 .385 / .335 .076 / .026 .054 / .009 10-497630-055 16 0.062 .296 / .250 .281 / .235 .454 / .401 .454 / .401 .232 / .182 .229 / .175 .207 / .158 10-597502-015 12 0.081 .265 / .215 .250 / .200 .469 / .410 .469 / .418 .265 / .215 .244 / .194 .222 / .177 AMPHENOL SJT SERIES PRINTED CIRCUIT BOARD CONTACTS - SOCKET
Contact Stickout Max. / Min. PCB Pin Contacts Size Tail Diameter +/- .001 SJT00RT SJTP00RT SJT02RE SJTP02RE SJT06RE SJT07RE (9-17) SJT07RE (19-25) 10-597878-011 22M 0.019 .328 / .263 .313 / .248 .532 / .467 .532 / .466 .328 / .263 .307 / .424 .285 / .225 10-597878-331 22M 0.019 .264 / .199 .249 / .188 .468 / .406 .468 / .405 .264 / .199 .243 / .182 .221 / .165 10-497623-025 22M 0.019 .905 / .840 .890 / .825 1.109 / 1.044 1.109 / 1.043 .905 / .840 .884 / .819 .862 / .802 10-597878-031 22M 0.019 .385 / .320 .370 / .305 .589 / .524 .589 / .523 .385 / .320 .364 / .299 .342 / .282 10-597878-041 22M 0.019 .245 / .180 .230 / .165 .449 / .384 .449 / .383 .245 / .180 .224 / .159 .202 / .142 10-597878-071 22M 0.019 .183 / .118 .168 / .103 .387 / .322 .387 / .321 .183 / .118 .162 / .097 .140 / .080 10-497623-145 22M 0.019 .646 / .576 .631 / .561 .850 / .780 .850 / .779 .646 / .576 .625 / .555 .603 / .538 10-597878-151 22M 0.019 .460 / .395 .445 / .380 .664 / .599 .664 / .598 .460 / .395 .439 / .374 .417 / .357 10-497643-015 20 0.019 .385 / .339 .370 / .316 .589 / .535 .589 / .536 .385 / .331 .364 / .310 .342 / .293 10-497643-025 20 0.019 .250 / .204 .235 / .181 .454 / .400 .454 / .401 .250 / .196 .229 / .175 .207 / .15 10-497643-035 20 0.019 .592 / .546 .577 / .523 .796 / .742 .796 / .743 .592 / .538 .571 / .517 .549 / .500 10-497650-015 16 0.040 .292 / .246 .277 / .223 .496 / .442 .496 / .443 .292 / .238 .271 / .217 .249 / .200 10-597503-015 12 0.081 .221 / .175 .206 / .152 .425 / .371 .425 / .372 .221 / .167 .200 / .146 .178 / .129 = Standard PC tail used |
|

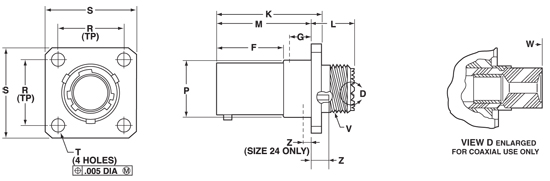

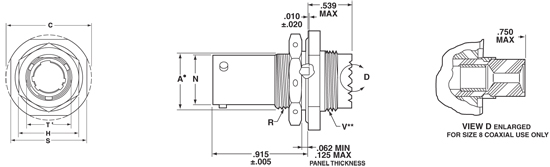

RECEPTACLESAMPHENOL SJT SERIES SJT00RT, JN1003B
V Thread Modified Shell Size L Max. M +.000/-.005 R (TP) S +.011/-.010 T +.005/-.005 Class 2A Major Diameter Modified N +.001/ -.005 P Max. 8 0.5 0.632 0.594 0.812 0.12 .4375-28 .412 - .417 .473 .117 10 .500 .632 .719 .938 .120 .5625-24 .542 - .538 .590 .117 12 .500 .632 .812 1.031 .120 .6875-24 .667 - .663 .750 .117 14 .500 .632 .906 1.125 .120 .8125-20 .791 - .787 .875 .117 16 .500 .632 .969 1.219 .120 .9375-20 .916 - .912 1.000 .117 18 .500 .632 1.062 1.312 .120 1.0625-18 1.034 - 1.030 1.125 .117 20 .500 .602 1.156 1.438 .120 1.1875-18 1.158 - 1.154 1.250 .087 22 .500 .602 1.250 1.562 .120 1.3125-18 1.283 - 1.279 1.375 .087 24 .550 .602 1.375 1.688 .147 1.4375-18 1.408 - 1.404 1.500 .055 AMPHENOL SJT SERIES SJT02RE, JN1003H
Shell Size F +.001/ -.005 (+.000/-.010) E +.006/-.000 (+.150/-.000) G Max. H Max. B (TP) A +.011/-.010 (+.040/-.040) C +.005/ -.005 (+.010/-.010) D +.001/ -.005 (+.000/-.130) P Max. 8 .632 .717 1.089 .469 .594 .812 .120 .473 .117 10 .632 .717 1.089 .594 .719 .938 .120 .590 .117 12 .632 .717 1.089 .719 .812 1.031 .120 .750 .117 14 .632 .717 1.089 .844 .906 1.125 .120 .875 .117 16 .632 .717 1.089 .969 .969 1.219 .120 1.000 .117 18 .632 .717 1.089 1.078 1.062 1.312 .120 1.125 .117 20 .602 .717 1.089 1.203 1.156 1.438 .120 1.250 .117 22 .602 .717 1.089 1.329 1.250 1.562 .120 1.375 .117 24 .602 .717 1.131 1.453 1.375 1.688 .147 1.500 .055 AMPHENOL SJT SERIES SJTP00RT
Shell Size F +.000/ K +.006/ L Max. M +.000/ R (TP) S +.011/ T +.005/ Z +.031/ V Thread Class 2A (Plated UNEF) P Diameter +.001/ W Max. G Max. 8 .609 (15.47) .945 (24.00) .539 (13.69) .860 (21.84) .594 (15.09) .812 (20.62) .120 (3.05) .062 (1.58) .4375-28 .516 (13.11) .812 (20.62) .345 (8.76) 10 .609 (15.47) .945 (24.00) .539 (13.69) .860 (21.84) .719 (18.26) .938 (23.82) .120 (3.05) .062 (1.58) .5625-24 .633 (16.08) .812 (20.62) .345 (8.76) 12 .609 (15.47) .945 (24.00) .539 (13.69) .860 (21.84) .812 (20.62) 1.031 (26.19) .120 (3.05) .062 (1.58) .6875-24 .802 (20.37) .812 (20.62) .345 (8.76) 14 .609 (15.47) .945 (24.00) .539 (13.69) .860 (21.84) .906 (23.01) 1.125 (28.57) .120 (3.05) .062 (1.58) .8125-20 .927 (23.54) .812 (20.62) .345 (8.76) 16 .609 (15.47) .945 (24.00) .539 (13.69) .860 (21.84) .969 (24.61) 1.219 (30.96) .120 (3.05) .062 (1.58) .9375-20 1.052 (26.72) .812 (20.62) .345 (8.76) 18 .609 (15.47) .945 (24.00) .539 (13.69) .860 (21.84) 1.062 (26.97) 1.312 (33.32) .120 (3.05) .062 (1.58) 1.0625-18 1.177 (29.89) .812 (20.62) .345 (8.76) 20 .609 (15.47) .945 (24.00) .539 (13.69) .860 (21.84) 1.156 (29.36) 1.438 (36.52) .120 (3.05) .062 (1.58) 1.1875-18 1.302 (33.07) .812 (20.62) .345 (8.76) 24 .750 (19.05) 1.085 (27.55) .493 (11.15) 1.000 (25.4) 1.375 (34.92) 1.688 (42.87) .147 (3.73) .078 (1.98) 1.4375-18 1.552 (39.42) .781 (19.84) .452 (11.48) AMPHENOL SJT SERIES SJTP02RE
Shell Size F +.000/ K +.006/ M +.000/ R (TP) S +.011/ T +.005/ Z +.031/ P Diameter +.001/ KK Diameter +.005/ G Max. 8 .609 (15.47) .945 (24.00) .860 (21.84) .594 (15.09) .812 (20.62) .120 (3.05) .062 (1.58) .516 (13.11) .417 (10.59) .345 (8.76) 10 .609 (15.47) .945 (24.00) .860 (21.84) .719 (18.26) .938 (23.82) .120 (3.05) .062 (1.58) .633 (16.08) .538 (13.66) .345 (8.76) 12 .609 (15.47) .945 (24.00) .860 (21.84) .812 (20.62) 1.031 (26.19) .120 (3.05) .062 (1.58) .802 (20.37) .663 (16.84) .345 (8.76) 14 .609 (15.47) .945 (24.00) .860 (21.84) .906 (23.01) 1.125 (28.57) .120 (3.05) .062 (1.58) .927 (23.54) .787 (19.99) .345 (8.76) 16 .609 (15.47) .945 (24.00) .860 (21.84) .969 (24.61) 1.219 (30.96) .120 (3.05) .062 (1.58) 1.052 (26.72) .912 (23.16) .345 (8.76) 18 .609 (15.47) .945 (24.00) .860 (21.84) 1.062 (26.97) 1.312 (33.32) .120 (3.05) .062 (1.58) 1.177 (29.89) 1.030 (26.16) .345 (8.76) 20 .609 (15.47) .945 (24.00) .860 (21.84) 1.156 (29.36) 1.438 (36.52) .120 (3.05) .062 (1.58) 1.302 (33.07) 1.154 (29.31) .345 (8.76) 22 .609 (15.47) .945 (24.00) .860 (21.84) 1.250 (31.75) 1.562 (39.67) .120 (3.05) .062 (1.58) 1.427 (36.25) 1.279 (32.49) .345 (8.76) 24 .750 (19.05) 1.085 (27.55) 1.000 (25.4) 1.375 (34.92) 1.688 (42.87) .147 (3.73) .078 (1.98) 1.552 (39.42) 1.404 (35.66) .452 (11.48) AMPHENOL SJT SERIES SJT07RT & JN1003A
Shell Size C Max. A +.001/-.010 (+0.00/-0.25) H HEX. S +.016/-.016 (+0.41/-0.41) T +.010/-.000 (+0.25/-0.00) V Thread Class 2A (Plated UNEF) R Thread Class 2A (Plated UNEF) N +.001/ -.005 (+.000/-0.01) 8 1.078(27.38) .542 (13.77) .750 (19.05) .938 (23.82) .572 (14.52) .5625-24 .5625-24 .473 (12.61) 10 1.203 (30.56) .669 (16.92) .875 (22.22) 1.062 (26.97) .697 (17.70) .6875-24 .6875-24 .590 (14.99) 12 1.391 (35.33) .830 (21.08) 1.062 (26.97) 1.250 (31.75) .884 (22.45) .8125-20 .8750-20 .750 (19.05) 14 1.515 (38.48) .955 (24.26) 1.188 (30.17) 1.375 (34.92) 1.007 (25.58) .9375-20 1.0000-20 .875 (22.22) 16 1.641 (41.68) 1.084 (27.53) 1.312 (33.32) 1.500 (38.10) 1.134 (28.80) 1.0625-18 1.1250-18 1.00 (25.40) 18 1.766 (44.86) 1.208 (30.68) 1.438 (36.52) 1.625 (41.27) 1.259 (31.98) 1.1875-18 1.2500-18 1.125 (28.57) 20 1.953 (49.61) 1.333 (33.86) 1.562 (39.67) 1.812 (46.02) 1.384 (35.15) 1.3125-18 1.3750-18 1.250 (31.75) 22 2.078 (52.78) 1.459 (37.06) 1.688 (42.87) 1.938 (49.22) 1.507 (38.28) 1.4375-18 1.5000-18 1.375 (34.92) 24 2.203 (55.96) 1.580 (46.13) 1.812 (46.62) 2.062 (52.37) 1.634 (41.50) 1.4375-18 1.6250-18 1.500 (38.10) Thread sizes are for SJT only, consult factory for JN1003A. All dimensions in inches (millimeters in parentheses) PLUGSAMPHENOL SJT SERIES SJT06RT, SJTG06RT & JN1003FG
V Thread Shell Size L Max. Q Max. Class 2A (Plated UNEF) Modified Major Diameter 8 1.219 (30.96) .734 (18.64) .4375-28 .412 - .417 10 1.219 (30.96) .844 (21.44) .5625-24 .542 - .538 12 1.219 (30.96) 1.016 (25.81) .6875-24 .667 - .663 14 1.219 (30.96) 1.141 (28.98) .8125-20 .791 - .787 16 1.219 (30.96) 1.265 (32.13) .9375-20 .916 - .912 18 1.219 (30.96) 1.391 (35.33) 1.0625-18 1.034 - 1.030 20 1.219 (30.96) 1.500 (38.10) 1.1875-18 1.158 - 1.154 22 1.219 (30.96) 1.625 (41.28) 1.3125-18 1.283 - 1.279 24 1.258 (31.95) 1.750 (44.45) 1.4375-18 1.408 - 1.404 All dimensions in inches (millimeters in parentheses) |
|
AMPHENOL SJT SERIES ACCESSORIES
Receptacle Dust Caps Plug Dust Caps SJT Shell Size Dummy Receptacles For Flanged For Jam Nut No Chain With Chain No Chain 8 10-476807-08Ɨ 10-431918-08Ɨ 10-432984-08Ɨ 10-325943-08Ɨ 10-476810-08Ɨ 10-476801-08Ɨ 10 10-467807-10Ɨ 10-431918-10Ɨ 10-432984-10Ɨ 10-325943-10Ɨ 10-476810-10Ɨ 10-476801-10Ɨ 12 10-467807-12Ɨ 10-431918-12Ɨ 10-432984-12Ɨ 10-325943-12Ɨ 10-476810-12Ɨ 10-476801-12Ɨ 14 10-467807-14Ɨ 10-431918-14Ɨ 10-432984-14Ɨ 10-325943-14Ɨ 10-476810-14Ɨ 10-476801-14Ɨ 16 10-467807-16Ɨ 10-431918-16Ɨ 10-432984-16Ɨ 10-325943-16Ɨ 10-476810-16Ɨ 10-476801-16Ɨ 18 10-467807-18Ɨ 10-431918-18Ɨ 10-432984-18Ɨ 10-325943-18Ɨ 10-476810-18Ɨ 10-476801-18Ɨ 20 10-467807-20Ɨ 10-431918-20Ɨ 10-432984-20Ɨ 10-325943-20Ɨ 10-476810-20Ɨ 10-476801-20Ɨ 22 10-467807-22Ɨ 10-431918-22Ɨ 10-432984-22Ɨ 10-325943-22Ɨ 10-476810-22Ɨ 10-476801-22Ɨ 24 10-467807-24Ɨ 10-431918-24Ɨ 10-432984-24Ɨ 10-325943-24Ɨ 10-476810-24Ɨ 10-476801-24Ɨ Ɨ Select code for plating Finish Suffix Anodic coating (005) -XX5 Cadmium plate nickel base (default) -XX7 Olive drab, cadmium, -XX9 Electroless nickel (023) -XXG
SJT Shell Size Endbells Straight Cable Range Cable Range Endbells Right Angle Cable Range Cable Range 8 10-476808-08Ɨ 0.125 (3.17) 0.250 (6.35) 620LA012B08** 0.98 (2.5) .234 (5.9) 10 10-476808-10Ɨ 0.187 (4.77) 0.311 (7.92) 620LA012B10** .153 (3.9) .234 (5.9) 12 10-476808-12Ɨ 0.311 (7.92) 0.437 (11.12) 620LA012B12** .190 (4.8) .328 (8.3) 14 10-476808-14Ɨ 0.375 (9.52) 0.561 (14.27) 620LA012B14** .260 (6.6) .457 (11.6) 16 10-476808-16Ɨ 0.500 (12.70) 0.625 (15.89) 620LA012B16** .283 (7.2) .614 (15.6) 18 10-476808-18Ɨ 0.624 (15.87) 0.750 (19.05) 620LA012B18** .325 (8.3) .634 (16.1) 20 10-476808-20Ɨ 0.624 (15.87) 0.750 (19.05) 620LA012B20** .343 (8.7) .698 (17.7) 22 10-476808-22Ɨ 0.748 (19.03) 0.937 (23.82) 620LA012B22** .381 (9.7) .823 (20.9) 24 10-476808-24Ɨ 0.800 (20.32) 1.000 (25.54) 620LA012B24** .418 (10.6) .853 (21.7) Ɨ Select code for connector plating * For JN1003 Backshells, please contact us. ** CAD OD Plated Version Finish Suffix Anodic coating (005) -XX5 Cadmium plate nickel base (default) -XX7 Olive drab, cadmium, -XX9 Electroless nickel (023) -XXG
SJT Shell Size Endbells Straight Endbells Right Angle Cable Range Cable Range 8 620LS048**08 620LA048**08 .98 (2.5) .234 (5.9) 10 620LS048**10 620LA048**10 .153 (3.9) .234 (5.9) 12 620LS048**12 620LA048**12 .190 (4.8) .328 (8.3) 14 620LS048**14 620LA048**14 .260 (6.6) .457 (11.6) 16 620LS048**16 620LA048**16 .283 (7.2) .614 (15.6) 18 620LS048**18 620LA048**18 .325 (8.3) .634 (16.1) 20 620LS048**20 620LA048**20 .343 (8.7) .698 (17.7) 22 620LS048**22 620LA048**22 .381 (9.7) .823 (20.9) 24 620LS048**24 620LA048**24 .418 (10.6) .853 (21.7) ** Select code for connector plating B = Olive Drab Chromate over Cadmium over Nickel (1000-Hour Salt Spray) C = Electroless Nickel (Fluid-Resistant) S = 300 Series Steel, Passivated All dimensions in inches (millimeters in parentheses) |
|

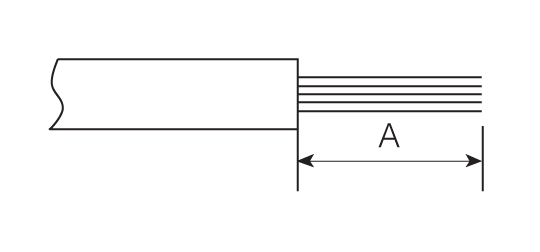

WIRE STRIPPINGAMPHENOL SJT SERIES WIRE STRIPPING
Wire Size A 22, 22M, 22D .125 (3.18) 20 .188 (4.77) 16 .188 (4.77) 12 .188 (4.77) 10 .335 (8.51) 8 (power) .470 (11.99) All dimensions in inches (millimeters in parentheses) CONTACT CRIMPINGAMPHENOL SJT SERIES CONTACT CRIMPING
Correct

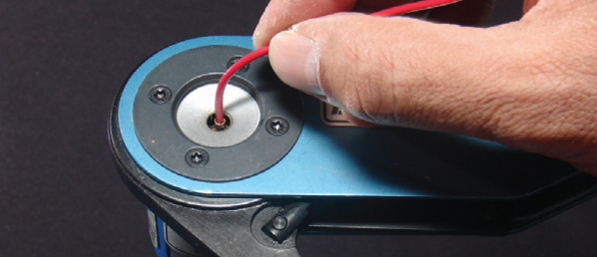

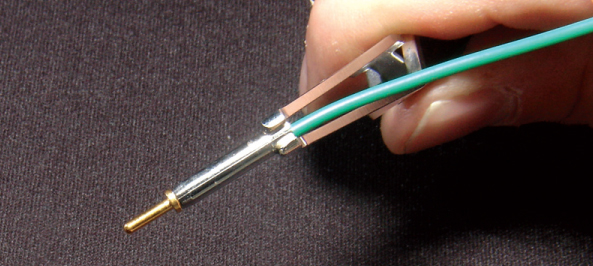

STEP 1: Insert wire into rear of contact. Wire insulation must press against rear of contact. Wire must be visible through inspection hole. STEP 2: M22520 series crimp tool and locator is recommended. See Contact and Tool Table for choice of turret head and selection setting according to contact size, part number and wire gauge size. STEP 3: Insert contact and wire into tool jaws. To crimp, squeeze handles together fully until ratchet releases and allows handles to expand; otherwise, contact cannot be extracted from tool jaws. Maintain slight insertion pressure on wire while crimping contact to wire. CONTACT INSERTIONAMPHENOL SJT SERIES CONTACT INSERTION
STEP 1: Remove hardware from plug or receptacle and slip over wire bundle in proper order for reassembly. STEP 2: Using proper plastic or metal insertion tool for corresponding contact, position wire in tip of the tool so that the tool tip presses against the contact shoulder. STEP 3: Press tool against contact shoulder and, with firm and even pressure, insert wired contact and tool tip into center contact cavity.

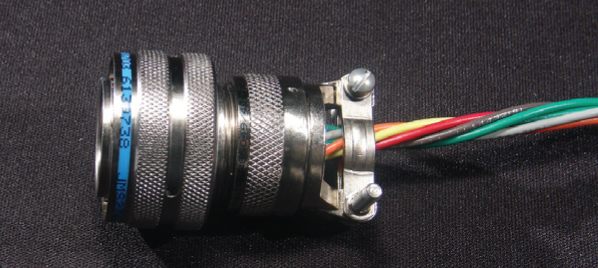

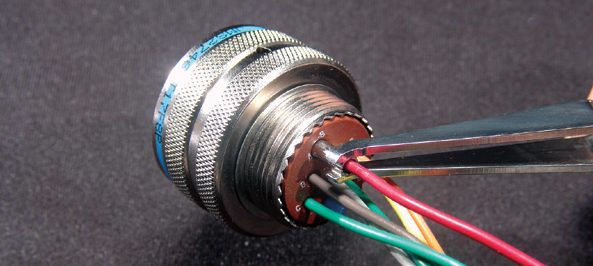

STEP 4: When contact bottoms, a slight “click” can be heard as tines of metal retaining clip snap into place behind contact shoulder. STEP 5: Remove tool and pull back lightly on wire to make sure contact is properly seated. Repeat operation with remainder of contacts to be inserted, beginning with the center cavity and working outward in alternating rows. STEP 6: After all contacts are inserted, fill any empty cavities with wire sealing plugs. Reassemble plug or receptacle hardware. CONTACT EXTRACTIONAMPHENOL SJT SERIES CONTACT EXTRACTION
STEP 1: Remove hardware from plug or receptacle and slide hardware back along wire bundle. STEP 2: Using plastic or metal extraction tool with proper color code corresponding to contact size, place wire in tool. STEP 3: Insert tool into contact cavity until tool tip bottoms against the contact shoulder, expanding clip retaining tines.

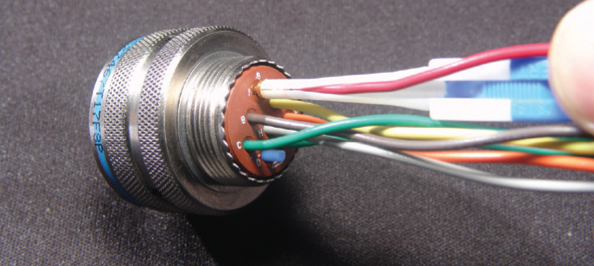

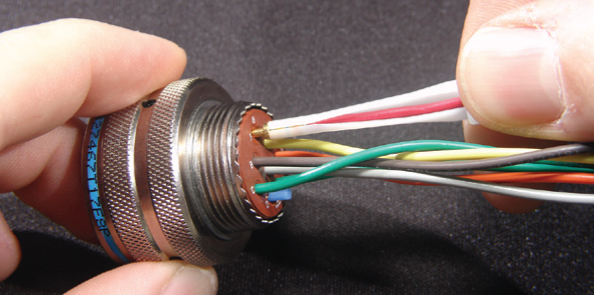

STEP 4: Hold wire firmly in tool and extract wired contact and tool. Repeat operation for all contacts to be extracted. STEP 5: Fill any empty cavities with wire sealing plugs. Reassemble plug or receptacle hardware. All dimensions in inches (millimeters in parenthesis) |
