AT06-2S-LED1224VR

Amphenol Sine

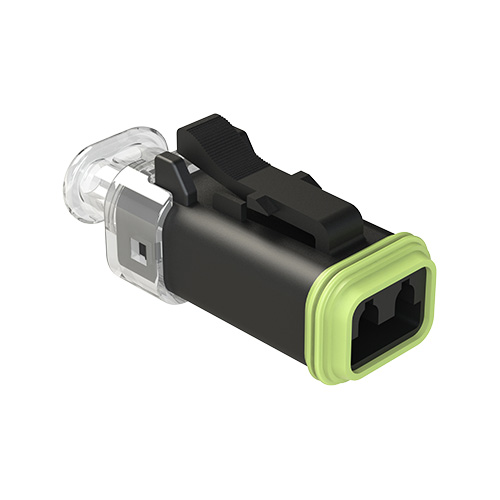

2 Position LED Plug, Socket, 12V or 24V, RVP Circuit, Reduced Diameter Seal, Clear Endcap, Green LED, Black

RUGGED, THERMOPLASTIC CONNECTORS

Amphenol Sine Systems AT Series™ connectors are designed as an IP68/69K rated (mated), high-performance, cost-effective, thermoplastic solution with superior environmental seals, seal retention capabilities and are designed for use with 14-22AWG with size 16 contacts handling up to 13A. Also available in BoardLock™, StructurePlus™, HYPERBUSS™ and PanelMate™ Series connectors. In addition, all of the AT Series™ connectors have been developed to be compatible with all other existing standard products industry-wide.

  • Available in 2, 3, 4, 6, 8, 12, 13 (Mixed), 15 (Mixed) and 18 positions
  • 14-22AWG, 13A, Size 16
  • Thermoplastic housing with integrated latch for mating
  • High temperature silicone seals provide superior sealing
  • Wedgelocks ensure proper contact alignment & retention
  • Compatible with existing standard products industry-wide
  • Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:IP67
Connector Type:Connector Rectangular
Connector Style:Plug - LED
Contacts, # of:2
Contact Style:Socket
Contact Size:2#16
Contacts Supplied:No
Shell Material:Thermoplastic
Shell Color:Black
Grommet & Seals Material:Silicone Rubber
Amperage Rating:13A
Operating Temperature °F (°C):-40 to +185 (-40 to +85)
Contact Mating Life:>100
Connector Series:A Series
Insulation Resistance:1000 Megohm @ 25 C
Series:AT, LED
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
