AWP-4SD

Amphenol Sine

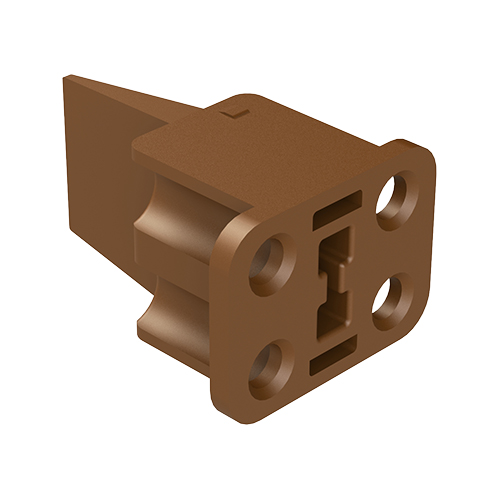

4 position Socket Wedgelock, Keyed D

ENVIRONMENTALLY SEALED THERMOPLASTIC CONNECTORS

Amphenol Sine Systems ATP Series™ connectors are designed as an IP68/69K rated (mated), high-performance, cost-effective, thermoplastic solution with superior environmental seals, seal retention capabilities and are designed for use with 10-14AWG with size 12 contacts handling up to 25A. Available in BoardLock™, HYPERBUSS™, PanelMate™, StructurePlus™ and SR01/02 options. In addition, all of the ATP Series™ connectors have been developed to be completely compatible with all other existing standard products industry-wide.

  • 2, 4 and 6 positiona available
  • 10-14AWG, 25A, Size 12
  • Thermoplastic housing with integrated latch for mating
  • High temperature silicone seals provide superior sealing
  • Wedgelocks ensure proper contact alignment & retention
  • Compatible with existing standard products industry-wide
  • Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
PRODUCT INFORMATION
Sealing:Unsealed
Connector Type:Accessory
Contacts, # of:4
Contact Style:Socket
Contacts Supplied:No
Shell Color:Brown
Insert Rotation/Keying:D
Accessory Type:Receptacle Wedgelock
Connector Series:A Series
Series:ATP, Structure Plus
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
