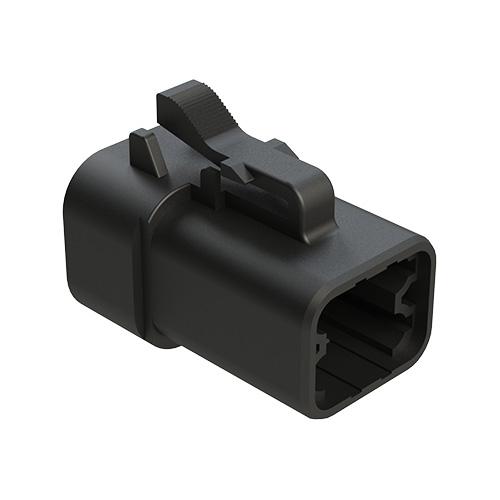

ATP06-4S-RD01BLK

Amphenol Sine

4-Way Plug, Female Connector with Reduced Diameter Seal, Black

ENVIRONMENTALLY SEALED THERMOPLASTIC CONNECTORS

Amphenol Sine Systems ATP Series™ connectors are designed as an IP68/69K rated (mated), high-performance, cost-effective, thermoplastic solution with superior environmental seals, seal retention capabilities and are designed for use with 10-14AWG with size 12 contacts handling up to 25A. Available in BoardLock™, HYPERBUSS™, PanelMate™, StructurePlus™ and SR01/02 options. In addition, all of the ATP Series™ connectors have been developed to be completely compatible with all other existing standard products industry-wide.

  • 2, 4 and 6 positiona available
  • 10-14AWG, 25A, Size 12
  • Thermoplastic housing with integrated latch for mating
  • High temperature silicone seals provide superior sealing
  • Wedgelocks ensure proper contact alignment & retention
  • Compatible with existing standard products industry-wide
  • Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:IP68 / IP69K
Connector Type:Connectors
Connector Style:Plug - Reduced Diameter Seal
Contacts, # of:4
Contact Style:Socket
Contact Size:4#12
Contacts Supplied:No
Shell Material:Thermoplastic
Shell Color:Black
Grommet & Seals Material:Silicone Elastomer
Amperage Rating:25A
Operating Temperature °F (°C):-40 to +266 (-40 to +130)
Contact Mating Life:>100
Connector Series:A Series
Insulation Resistance:1000 Megohm min @ 25 C
Series:ATP
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
