TVP00RW-23-35PA

View Photo  |  View Layout

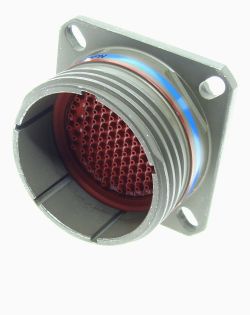

Amphenol - 38999 Connector

TV/CTV Series, 100 Size 22D Crimp Pin Contacts, Layout 23-35, Wall - Front Mount - Thru Holes Receptacle, Olive Drab Chromate over Cadmium Plating

HIGH DENSITY CONNECTORS RATED TO 38999 SPEC

The 38999 family of high density connectors was designed to work with existing MIL-Spec 38999 shells. To the end users familiar with standard 38999 connectors, this family of high density connectors will look, feel, and perform just like the MIL-Qualified connectors. Utilizing an existing MIL-Spec 39029 size 23 contact and MIL-Spec shells, the new system is usually a drop-in connector. Even though this high density connector has 30% more contacts, it still performs to minimum electrical requirements of standard 38999 connectors.

** Actual product appearance may vary **

Price Information

Available Qty: 107
Order Qty:
CAN SHIP:in 4 days

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.
QuantityPrice
1 - 9$145.21$145.21
10 - 24$125.85$125.85
25 - 49$111.05$111.05
50 - 99$99.36$99.36
100 - 107$87.13$87.13
108+
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Specification:MIL-DTL-38999
Sealing:IP67
Shielding:Yes
Connector Type:Circular
Connector Style:Receptacle - Groundplane
Mounting Type:Wall - Rear Mount - Thru Holes
Contacts, # of:100
Contact Style:Socket
Termination Method:Crimp
Crimp Wire Gauge:28, 26, 24, 22
Insert Arrangement:23-35
Contact Size:100#22D
Contacts Supplied:Yes
Contact Material:Copper Alloy
Contact Plating:50 microinches Gold Plate
Shell Material:Aluminum Alloy
Shell Plating:Olive Drab Cadmium
Shell Color:Olive Drab
Insert Material:Hard Dielectric
Grommet & Seals Material:Silicone
Amperage Rating:5A
Operating Voltage AC V RMS Max:400
Operating Temperature °F (°C):-85 to +347 (-65 to +175)
Contact Mating Life:500
Insert Rotation/Keying:A
Operating Voltage DC:500
Service Rating:M
Export Class: EAR / EAR99
RoHS: No
Weight (lbs): Unknown
Weight (g): Unknown
