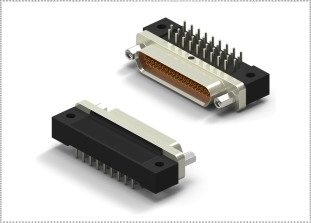

Ulti-Mate Micro-D Circuit Right Angle .075 X .100 Styles 8, 18 Connector

SPACE-SAVING MICRO-D RECTANGULAR CONNECTOR

PEI-Genesis offers Ulti-Mate’s Micro-D Circuit Series - Right Angle .075 x .100 Styles 8 and 18. These condensed-footprint right angle connectors are designed to fit circuit board applications; Style 18 is designed for flex circuit applications where the use of a jackscrew is necessary. Both utilize the same condensed footprint and are recommended for new designs over the older Styles 1(CBR) and 5 (BR). The termination footprints are contained within the envelope of the connector body, for optimal space savings while maintaining MIL-DTL-83513 specifications. Spacing between rows is 0.075 on all layouts. Stamped pins create consistency when assembled in order of manufacture, assuring dimensional consistency and quality control.

TECH
SPECS

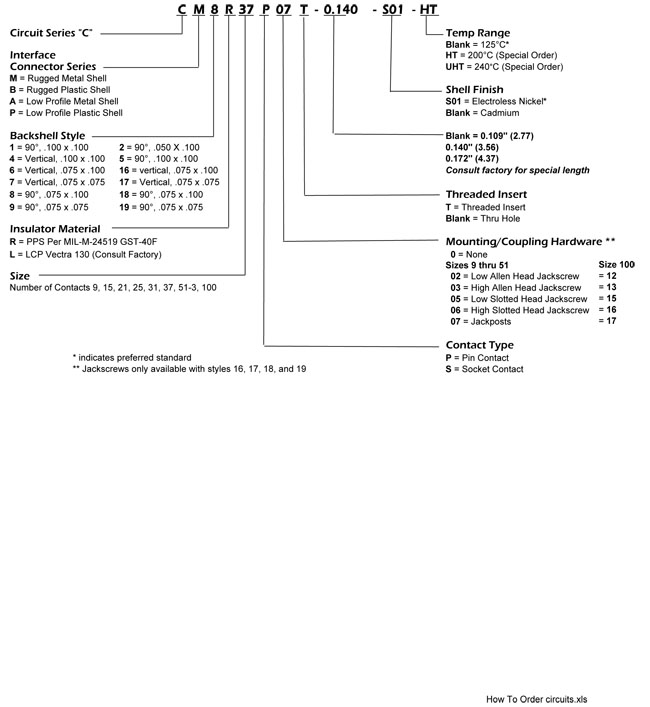

CREATE
PART NUMBER
DIMENSIONS

MATERIALS & FINISHES

ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .075 x .100 STYLE 8, 18 MATERIALS & FINISHES

Pin Contacts

Beryllium Copper (C17200) per ASTM B194.

Socket Contacts

Copper alloy (C21000) per ASTM B36 or leaded commercial bronze (C314000) per ASTM B140.

Contact Plating

Gold plated per MIL-DTL-45204D. 50 microinches min. is the standard thickness.

Metal Shells

Aluminum alloy per SAE-AMS-QQ-A-200/8, type 6061-T6. Finish is cadmium per SAE-AMS-QQ-P-416, TYPE II, CLASS 3, with suitable underplate with yellow chromate, this plating is not RoHS compliant. Or Finish Electroless Nickel plate per SAE AMS2404, class 3 or 4, .0005 minimum thickness.

Insulator Material

Preferred material is Polyphenylene sulfide (PPS) per MIL-M-24519 or ASTM D5927 GST 40F. Color Black.

LCP

Liquid Crystal Polymer-Vectra 130 (optional).

Interfacial Seals

Fluorosilicone elastomer per MIL-R-25988. Standard on “M” Series socket face.

Hardware

Stainless Steel, passivated.

Standard Plating

Electroless Nickel or Cadmium.

Optional Plating

Tin, Olive Drab or Gold.

Stainless Steel shells are available in all configurations.

ELECTRICAL DATA

ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .075 x .100 STYLE 8, 18 ELECTRICAL DATA

Contact Resistance

8 mΩ Maximum @ 2.5 A

Current Rating

3.0 A Maximum

Dielectric Withstanding Voltage

900 VAC at sea level, 300 VAC @ 70,000 ft. Solder cups and shielded cable same as MIL-DTL-83513; 600 VAC at sea level 150VAC @ 70,000 ft.

Insulation Resistance

5,000 MΩ Minimum

MECHANICAL

ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .075 x .100 STYLE 8, 18 MECHANICAL MECHANICAL

Contact Engaging and Separating Forces

6 oz. max per MIL-DTL-83513 (contact average is 3 oz.); Separation force is 5.0 oz. minimum.

Contact Mating and Unmating Forces per MIL-DTL-83513

Mate = 10 oz. X number of contacts maximum. Unmate = 10.5 oz. X number of contacts minimum.

Vibration

No damage or interruption detected (one microsecond sensitivity) when subjected to Method 2005, Test Condition IV of MIL-STD-1344.

Shock

No damage or interruption detected (one microsecond sensitivity) when subjected to Test Condition E. Method 2004 of MIL-STD-1344.

Durability

No mechanical defects after 500 matings; Test criteria are mating force, contact resistance, contact engagement, and separation forces.

Salt Spray

No exposure of base metal or loss of performance after 96 hours for both Nickel and Cadmium plating.

HARDWARE

ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .075 x .100 STYLE 8, 18 HARDWARE

Description

Mil Spec

UMI

A Max.

B Max.

Thread

Used on Sizes

Jackscrew Lo Allen

Jackscrew Hi Allen

Jackscrew
Lo Slot

Jackscrew
Hi Slot

Jackpost

M83513/05-02

M83513/05-03

M83513/05-05

M83513/05-06

M83513/05-07

83041xxxx

.361
(9.17)

.868
(22.05)

.361
(9.17)

.868
(22.05)

.500
(12.70)

.103
(2.62)

.610
(15.49)

.103
(2.62)

.610
(15.49)

.190
(4.83)

2-56 UNC-2A

2-56 UNC-2B

9 through 51

Jackscrew Lo Allen

Jackscrew Hi Allen

Jackscrew
Lo Slot

Jackscrew
Hi Slot

Jackpost

M83513/05-012

M83513/05-013

M83513/05-015

M83513/05-016

M83513/05-017

83041xxxx

.390
(9.91)

.902
(22.91)

.390
(9.91)

.902
(22.91)

.500
(12.70)

.103
(2.62)

.610
(15.49)

.103
(2.62)

.610
(15.49)

.185
(4.70)

4-40 UNC-2A

4-40 UNC-2B

100

Jackscrew Low Profile
Jackscrew High Profile
Jackpost
Float Mount
Front Panel Mount
Rear Panel Mount (Consult Factory)

CONTACT ARRANGEMENTS

ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .075 x .100 STYLE 8, 18 CONTACT ARRANGEMENTS

Contact Arrangements

2 row

9, 15, 21, 25, 31, 37

3 row

51-3

4 row

100

Custom 2 row arrangements

From 5 to 65 position

Available in rugged metal & intermatable rugged plastic shell configurations or available in low profile Metal & intermatable low profile plastic shell configurations.
